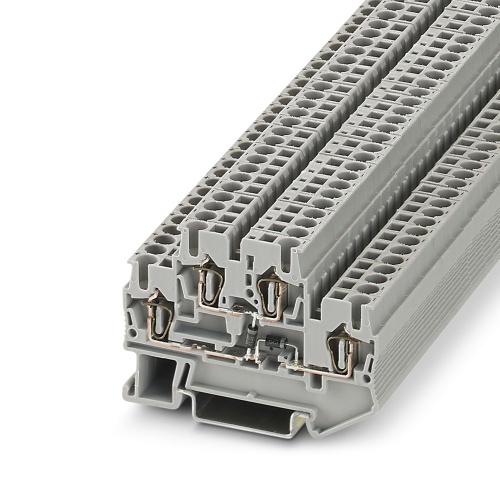

Phoenix Contact 3035263 Component terminal block STTB 2,5-2DIO/UL-O/UL-UR
Normally In Stock
Code: 62350
STTB 2,5-2DIO/UL-O/UL-UR Phoenix 3035263 Component terminal block Spring-cage connection 250 V 22 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$15.84
Sale Price
$13.20
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

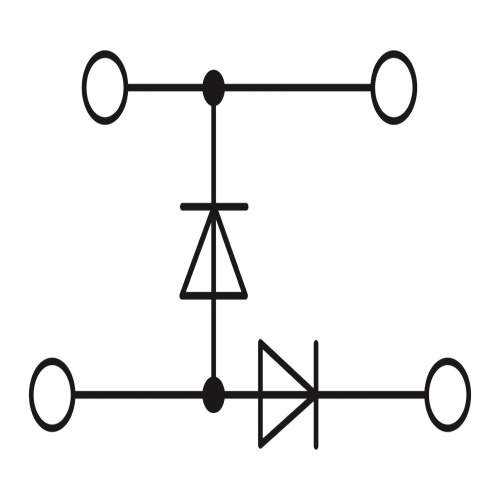

Phoenix Contact 3035263 The component terminal block features an integrated 1N4007 diode with a nominal current rating of 0.5 A and is designed for connections at both the first and second levels. The cross-sectional area ranges from 0.08 mm2 to 4 mm2, with a rated cross-section of 2.5 mm2. This terminal block can be mounted using two different standards: NS35/7.5 and NS35/15, and is typically colored gray in gray hue.
Specifications
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
22 Amp
Sub Component
Component Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
Downloads
Phoenix 3035263 Tender Text English.zipPhoenix 3035263 Safety note English.pdfPhoenix 3035263 Manufacturers declaration International.pdfPhoenix 3035263 Manufacturers declaration English.pdfPhoenix 3035263 CAD data International.stpPhoenix 3035263 CAD data International.pdfPhoenix 3035263 CAD data International.dxf
