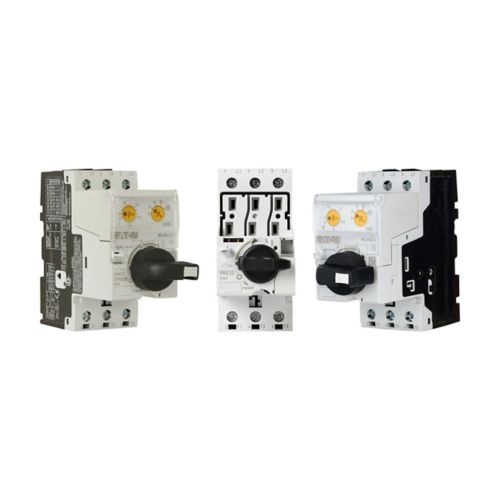

Eaton XTSC016BBMAD Non-Reversing Manual Motor Controller - 16 Amp, 120 VDC Coil
Normally In Stock
Code: 623434
Eaton XTSC016BBMAD Non-Reversing Manual Motor Controller - 16 Amp, 120 VDC Coil - Combined with a 45 mm B-frame, 7 to 15A IEC contactor, Short circuit release: 224A
Condition: New
Usually ships Same Day or Next Day$450.92
Sale Price
$375.77
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton XTSC016BBMAD - Manual motor controller—FVNR, 16 Amp, 120 VDC Coil, , 45 mm, 0.1 to 32 A Frame
Specifications
Starter Reversing Capability
Non-Reversing
Starter Amperage
16 Amp
Manufacturer
Eaton
Starter Coil Voltage
120 VDC
Component
Manual Motor Controller
Features
ON/OFF rotary handle with lockout provision
Visible trip indication
Test trip function
Motor applications from 0.10A to 65A
Class 10 overload protection
Built-in heater and magnetic trip elements to protect the motor
Phase loss sensitivity
Type 2 coordination
Ambient compensated up to 55°C [140°F]
Control inputs located at front of starter for easy access and wiring
Wide range of coils
DIN rail mount— XTSC…BB_
Mounting plates— XTSC…BC_, XTSC…D motor controllers
Adjustment dial for setting motor FLA
Short-circuit trip at 14 times the maximum setting of the FLA adjustment dial
UL 508 Type F and Type E CMC high fault short-circuit ratings
1NO-1NC auxiliary contact as standard on manual motor controller and combination motor controller
