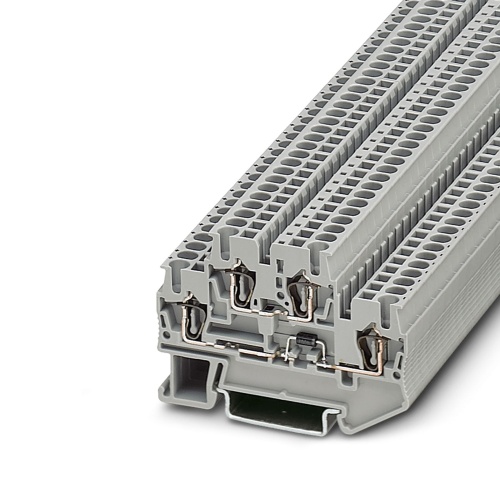

Phoenix Contact 3031571 Component terminal block STTB 2,5-DIO/UL-UR
Normally In Stock
Code: 62343
STTB 2,5-DIO/UL-UR Phoenix 3031571 Component terminal block Spring-cage connection 500 V 22 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$13.15
Sale Price
$10.96
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

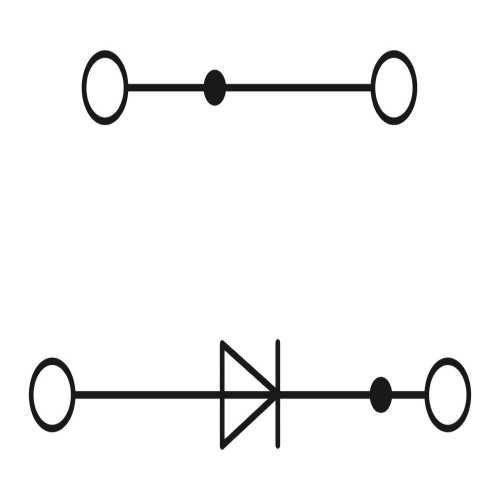

Phoenix Contact 3031571 The component terminal block is designed with a diode, specifically the 1N4007, which has a maximum reverse voltage of 1300V and a maximum continuous current of 0.5A. The integrated diode has a nominal current rating of 0.5A for both its first and second levels of connection. The cross-section of the component is rated at 2.5mm², with optional sizes ranging from 0.08mm² to 4mm², and it can be mounted using either NS35/7.5 or NS35/15 types, with a color finish of gray.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
22 Amp
Sub Component
Component Terminal Block
Features
For more versions and versions for soldering in components yourself, visit phoenixcontact.com/products
Double-level diode and LED terminal blocks perform a wide range of switching tasks
Downloads
Phoenix 3031571 CAD data International.dxfPhoenix 3031571 CAD data International.pdfPhoenix 3031571 CAD data International.stpPhoenix 3031571 Data Sheet English.pdfPhoenix 3031571 Manufacturers declaration English.pdfPhoenix 3031571 Manufacturers declaration International-2.pdfPhoenix 3031571 Manufacturers declaration International.pdfPhoenix 3031571 Safety note English.pdfPhoenix 3031571 Tender Text English.zip
