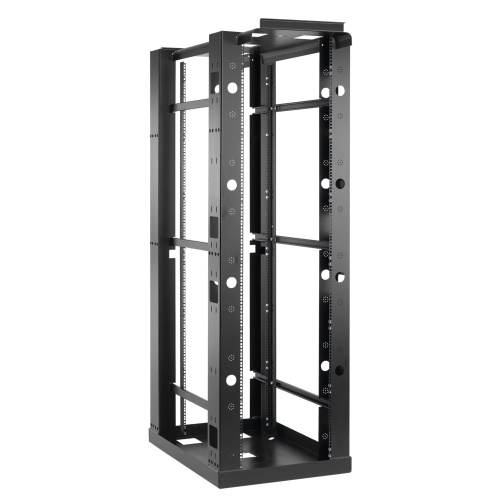

Hoffman E4SDR19FM45U 87.0"x27.0"x40.0" Network Seismic 4-Post Open-Frame Rack
Hoffman E4SDR19FM45U 87.0"x27.0"x40.0" Free Standing Network Seismic 4-Post Open-Frame Rack
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $4544.80
Sale Price:
$3445.31
Hoffman E4SDR19FM45U 87.0"x27.0"x40.0" Free Standing Network Seismic 4-Post Open-Frame Rack
| Specifications | |
| Component | Seismic Open Frame Rack |
| Seismic Component Rack Units | 45 |
| Seismic Component Interior Color | Black |
| Seismic Component Depth | 40.0" |
| Seismic Component Lock Type | None |
| Seismic Component Height | 87.0" |
| Seismic Component Width | 27.0" |
| Seismic Component Composition | Steel |
| Manufacturer | Hoffman |
| Enclosure Number of Doors | 1 Door |
- Can be ganged with both 2- and 4- post open frame racks
- Rear rack angle adjustable 0 to 39.09 inch (0 to 993 mm)
- Nominal height is 7 feet (2.1 m)
- Integral front waterfall top
- EIA universal 5/8 - 5/8 - 1/2 in. spaced square holes fit 19-inch rack equipment and accessories
- Rack is fully welded for maximum rigidity
- Pre-drilled holes on top to ease runway installation
- Full complement of matching components for equipment and cable management
- Ground provision with ground symbol
- Top and bottom cable entry cutouts
Customer Reviews
0.0
All Reviews
Hoffman E4SDR19FM45U 2D DXF CAD.zip
Hoffman E4SDR19FM45U 3D STEP CAD.zip
Hoffman E4SDR19FM45U Declaration of Compliance.pdf

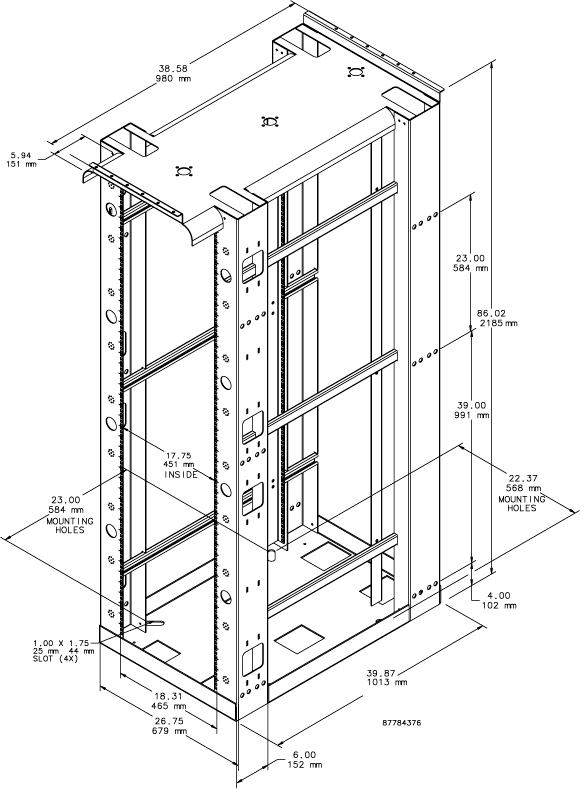

Hoffman E4SDR19FM45U Dimension Drawing.gif
Hoffman E4SDR19FM45U EU Certification.pdf
Hoffman E4SDR19FM45U Instruction Manual.pdf
Hoffman E4SDR19FM45U OSHPD OPM Calculations.pdf
Hoffman E4SDR19FM45U OSHPD OPM, 4-Post Rack.pdf
Hoffman E4SDR19FM45U Spec Sheet.pdf
Hoffman E4SDR19FM45U UL Certification.pdf
