Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Tek-Trol 4800A-TF-1-42-05-T7 - Tek-Sub 4800A PTFE Submersible Level Transmitter, 2.8 psig, ±0.5
Normally In Stock
Code: 618988
Tek-Trol 4800A-TF-1-42-05-T7 - Tek-Sub 4800A PTFE Submersible Level Transmitter, 2.8 psig, ±0.5
Condition: New
Usually ships within a week$1061.10
Sale Price
$884.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

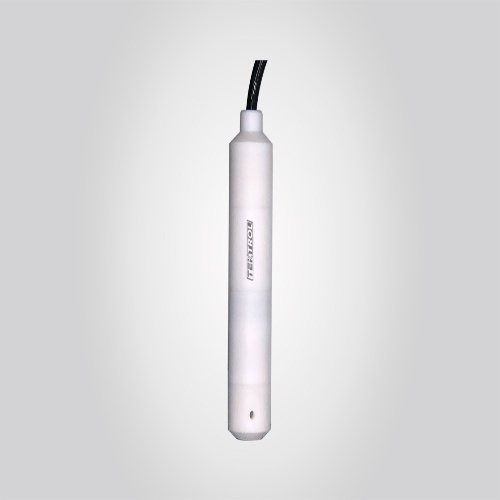

Tek-Trol 4800A-TF-1-42-05-T7 - The Tek-Sub 4800A PTFE Submersible Level Transmitter has been designed for continuous submersion in aggressive fluids. This submersible device uses a rugged ceramic pressure sensor encased in PTFE housing that provides excellent corrosion resistance in most fluids. It facilitates simple installation, easy cleaning and years of trouble-free service with almost no maintenance. The device guarantees stability and reliability in harsh environments.The Tek-Sub 4800A operates on 12-36 VDC power. Available outputs are 4-20 mA, 0.5-4.5 VDC or RS-485.
Specifications
Manufacturer
Tek-Trol
(Instrument-Sensor) Output Signal Range
4 - 20 mAmp
(Instrument-Sensor) Measurement Accuracy
0.60%
Component
PTFE Submersible Level Transmitter
(Instrument-Sensor) Span
2.8 Psig
Features
Measuring Pressure ranges from 2.8 psig to 15 psig (2 mH2O to 10.5 mH2O)
Accuracy: ±0.5% FS
Temperature compensated
Available in PTFE housing
Ceramic pressure sensor design
Variety of Pressure and Electrical connections
Output: 4 to 20 mA, 0.5 to 4.5 VDC, RS485
