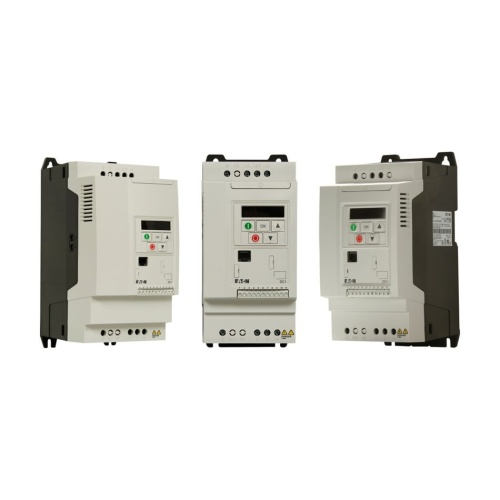

Eaton DC1-322D3NN-A20CE1 - DC1 Series VFD, 240 Volt Three Phase, 0.5 HP, 2.3 Amp, IP20
Normally In Stock
Code: 618570
Eaton DC1-322D3NN-A20CE1 - DC1 IP20 240V 3PH IN/3PH OUT 0.5HP, 2.3A ENH FW - 6.25" x 9" x 5" (HxWxD)
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$579.79
Sale Price
$483.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DC1-322D3NN-A20CE1 - Eaton’s PowerXL® DC1 variable frequency drives represent a new era in drive technology, tailor-made for modern machinery applications. Designed with simplicity and efficiency in mind, the DC1 boasts a compact form factor and straightforward setup with just 14 basic parameters. It features SmartWire-DT and EtherNet/IP connectivity for seamless integration into industrial networks, making it a favorite among panel builders and those seeking quick commissioning. The addition of sensorless vector control and compatibility with permanent magnet motors enhances its versatility, catering to a wide range of motor applications including single-phase setups. With models available in various voltage and horsepower ratings, along with IP66-rated options for outdoor use, the DC1 combines reliability, ease of use, and advanced features like integrated EMC filters, brake chopper (in higher frames), and dual EtherNet/IP communication modules to meet the diverse needs of modern machinery control systems.
Specifications
VFD Horsepower Output
0.5 HP
VFD Amperage Output
2.3 Amp
VFD Input Voltage
240 Volt Three Phase
VFD Output Voltage
240 Volt Three Phase
VFD NEMA-IP Rating
IP20
Manufacturer
Eaton
VFD Frame Type
FR1
VFD Line
DC1
*NON-CANCELLABLE, NON-RETURNABLE*
*NON-CANCELLABLE
*NON-CANCELLABLE, NON-RETURNABLE*
NON-RETURNABLE*
Features
Fast commissioning with 14 basic parameters
High overload capability: 150 % for 60 sec., 175 % for 2 sec
Ambient air temperature of 50°C without derating (IP20)
Plug-in modules can be used to expand the number of relay I/Os
Integrated CANopen and Modbus RTU
Protection types: IP20 and IP66
EMC filter, optional
Braking transistor, optional
Integrated PI controller
V/F control with voltage boost
International standards (CE, UL, cUL, c-Tick, RoHS, Gost-R, UkrSEPRO)
