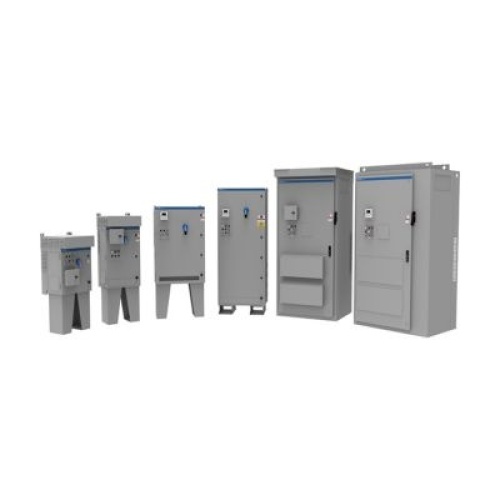

Eaton EHB0144A3JT0E00000 - DH1 - Enclosed Series VFD, 480 Volt Three Phase, 10 HP, 14 Amp, NEMA 3R
Normally In Stock
Code: 618078
Eaton EHB0144A3JT0E00000 - PowerXL DH1 variable frequency drive, HVAC bypass 14A, 10 hp 480V NEMA 3R std HVAC base SCCR 2 contactor byp w/ iso contactor man byp switch - 15.8" x 12.7" x 50" (HxWxD)
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$9875.99
Sale Price
$8229.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton EHB0144A3JT0E00000 - The PowerXL DH1 Series Enclosed Drives integrate cutting-edge Eaton drive technology into pre-engineered solutions tailored for common HVAC/R applications. These enclosed drives enhance user safety with high short circuit current ratings of up to 100 kAIC and boast industry-leading energy efficiency thanks to Eaton’s Active Energy Control® algorithm. Features include VT ratings compliant with HVAC/R standards, various input power protection options, multiple contactor bypass configurations, and a compact disconnect enclosure for simplified applications. They come in standard NEMA 12 and 3R designs, are plenum rated, and offer onboard HVAC/R communications for easy integration with building management systems. With communication protocols like BACnet/IP and Modbus, along with different enclosure ratings and mounting options, the DH1 Series Enclosed Drives cater to a wide range of HVAC/R power needs from 1 to 250 horsepower across different voltage ratings.
Specifications
VFD Horsepower Output
10 HP
VFD Amperage Output
14 Amp
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
Manufacturer
Eaton
VFD NEMA-IP Rating
NEMA 3R
VFD Line
DH1 - Enclosed
VFD Brake
No Brake Chopper
*NON-CANCELLABLE, NON-RETURNABLE*
*NON-CANCELLABLE
*NON-CANCELLABLE, NON-RETURNABLE*
NON-RETURNABLE*
Features
Energy optimization: Active energy control algorithm, 5% DC choke, input surge protection, EMI/RFI filter built-in
HVAC communications built-in: BACnet/IP, BACnet MS/TP, Modbus RTU, Modbus/TCP
Easy to use: Startup Wizard, PC Tool software, three built-in applications, diagnostics, auto button, removable keypad with copy/paste functionality
Space savings: Compact size, open Type 12 option, on-board communication and I/O
On-board I/O: Includes built-in, on-board I/O to help eliminate the need for costly option cards, and to work seamlessly right out of the box
Reliability: Low overload (VT) rated, conformal coated boards, durable metal power section, 50°C rating (60°C de-rating), removable keypad rated IP54. Standard NEMA 1/12/3R enclosed offering up to 250hp
Certifications: UL®, CE, cUL®, RoHS, C-Tick
