Code: 61789

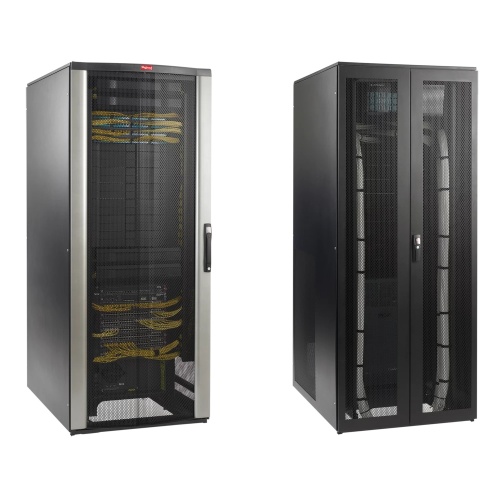

nVent Hoffman PNS20810B 79.0"x32.0"x40.0" PROLINE Network Switch Cabinet
nVent Hoffman PNS20810B 79.0"x32.0"x40.0" Switch Cabinet Free Standing PROLINE Network Switch Cabinet (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)$7670.35
Sale Price
$6391.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman PNS20810B 79.0"x32.0"x40.0" PROLINE Network Switch Cabinet PROLINE Network Switch cabinet is a pre-engineered solution for the thermal and cable management needs of large data center network core switches.
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Mount Type
Free-Standing
Dual Access Enclosures
Dual Access Enclosure
Enclosure Composition
Aluminum
Enclosure Depth
40"
Enclosure Door Type
Perforated
Enclosure Interior Color
Black
Enclosure Type
Switch Cabinet
Enclosure Width
32"
Enclosure Height
79"
Enclosure Latch Type
None
Line
PROLINE
Component
Network Enclosure
Enclosure Number of Doors
1 Door
Manufacturer
Hoffman
Enclosure Lock Type
Keylock
Features
Front vertical cable manager has integral hinged doors to house, protect and provide aesthetic appearance
Front door has keyed multi-point vault-style latch system and central key lock to ensure security
Split overlapping rear doors provide quick access to equipment without blocking aisles (7009 and 7018 Series have split front and rear doors)
Front cable manager uses arrowhead support fingers to support and ensure proper bend radius, provide increased cable capacity and facilitate assembly
Integrated right-to-left airflow ducting ensures core switch is supplied with air from cold aisle
Meets all CISCO 6509, 6513, 7009 and 7018 Series network switch installation and operational requirements
Available standard with sides or without for use in ganged applications
Network core switch shelf located at bottom of cabinet (2 RU on 65089/6513 Series, 0 RU on 7018 Series)
6509 and 6513 Series only:
Open base allows under floor cable entry
Top-mount sliding gland plate provides large opening for cables, pre-terminated cable bundles and patch panels
Attractive, rigid front door made of aluminum extrusions and formed perforated steel, with more than 70 percent open space for free flow of cool air to equipment
Rear upper-mounted 4 RU equipment mounting angles provide for PDUs, fiber-to-copper transition, splitter equipment and other 19-in. rack-mounted equipment
Switch shelf is included with cabinet
Front set of 19-inch mounting rails are tapped (10-32) per EIA standards
Top and sides are formed steel
Sides secured with fasteners
Rear horizontal and vertical cable management provide support and transition of permanent link cables
