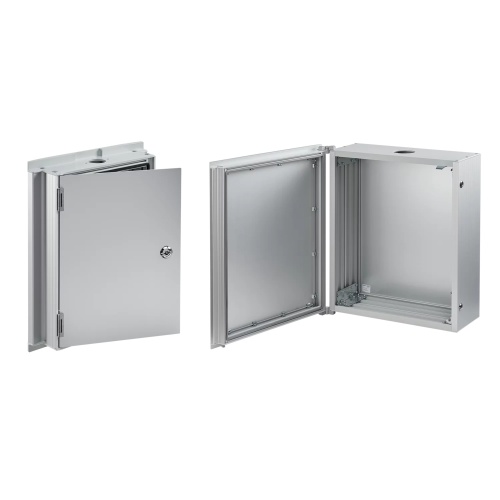

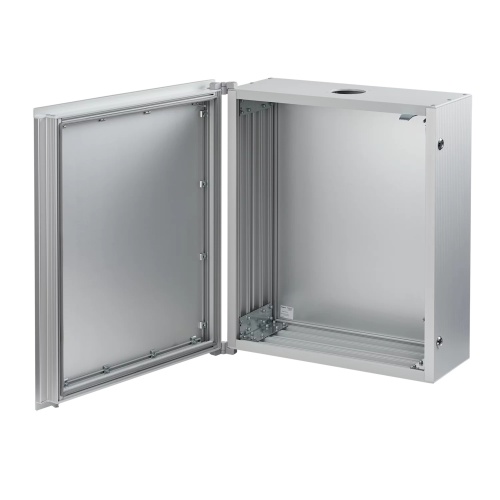

Hoffman SY605026A 28.0"x25.0"x12.0" SYSPEND Aluminum HMI Enclosure, Type 12
Hoffman SY605026A 28.0"x25.0"x12.0" Type 12 Indoor Pendant/Pedestal Mount HMI Enclosure SYSPEND Aluminum HMI Enclosure, Type 12 (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $4008.20
Sale Price:
$3155.03
Hoffman SY605026A 28.0"x25.0"x12.0" SYSPEND Aluminum HMI Enclosure, Type 12 A traditional landscape-oriented HMI enclosure made of light-gray steel, the CONCEPT HMI is unique among HMI enclosure systems when you need a range of customization options. This pendant- or pedestal-mounted system has many possible configurations and modifications, including a removable front plate that makes it easy to install HMI components and the ability to accommodate cutouts anywhere on the enclosure.
| Specifications | |
| Line | SYSPEND |
| HMI Door Type | Solid |
| HMI Interior Color | Gray |
| HMI Depth | 12.0" |
| HMI Height | 28.0" |
| HMI Environment Rating | Indoor |
| HMI Composition | Aluminum |
| HMI Width | 25.0" |
| Manufacturer | Hoffman |
| HMI Mount Type | Pendant/Pedestal Mount |
| Component | HMI Enclosure |
| HMI NEMA Rating | NEMA Type 12 |
| HMI Number of Doors | 1 Door |
- Front plate installed into enclosure
- Integrated side handles for clean appearance and ease of operation
- Integrated mounting extrusions for installing components or din rail directly inside the enclosure using brackets or spring nuts
- Pre-cut mounting holes compatible with support arm systems, pedestal mounting when enclosure is inverted
- Body is available hinged or solid with hinged back-plate for a variety of configurations
- Extruded, single-walled aluminum construction for enhanced ergonomics and heat dissipation
- Oil-resistant gasket attached with oil-resistant adhesive
