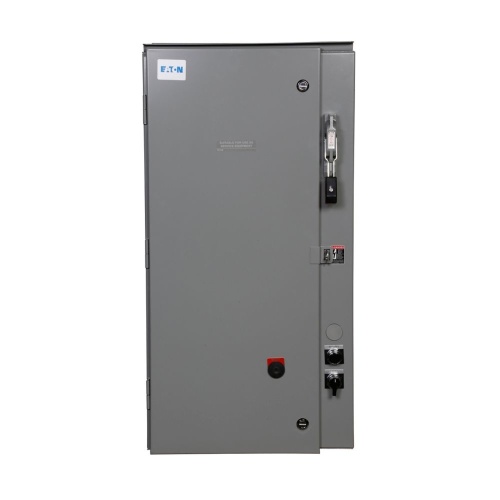

Eaton ECN5522AAF-R63/D Pump Panel w/ Circuit Breaker Disconnect - 45 Amp, 110 VAC, 120 VAC Coil, NEMA 3R
Normally In Stock
Code: 613854
Eaton ECN5522AAF-R63/D - Freedom Industrial Pump Panel, Circuit breaker disconnect, NEMA 3R painted steel enclosure, 110V/50 Hz-120V/60 Hz coil, NEMA size 2, 9-45A solid-state relay without ground fault, 50A breaker
Condition: New
Usually ships Same Day or Next Day$6231.16
Sale Price
$5192.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton ECN5522AAF-R63/D - Freedom Industrial Pump Panel, Circuit breaker disconnect, NEMA 3R painted steel enclosure, 110V/50 Hz-120V/60 Hz coil, NEMA size 2, 9-45A solid-state relay without ground fault, 50A breaker - 38.4" x 18.86" x 8.47" (HxWxD)
Specifications
Starter Coil Voltage
120 VAC
Starter Enclosure Type
NEMA 3R
Starter Coil Voltage
110 VAC
Starter Amperage
27 Amp
Manufacturer
Eaton
Component
Industrial Pump Panel
Features
These ECN55 pump controllers feature the Freedom line starters.
They have a HAND/OFF/AUTO selector switch and START pushbutton mounted on the enclosure and a RESET button on the front
Eaton’s pump controllers are combination starters with accessories and modifications designed to meet the particular requirements of the irrigation, oil well, gas and other pump application industries
The enclosure is Type 3R to provide weather-tight protection and is available in several sizes, depending on the customer’s control option requirements.
The disconnect, contactor and overload relay are the same as used in Freedom lines of combination starters
These controllers are available in standard full voltage as well as reduced voltage configurations, with vacuum contactors as well as the standard electromechanical contactors.
