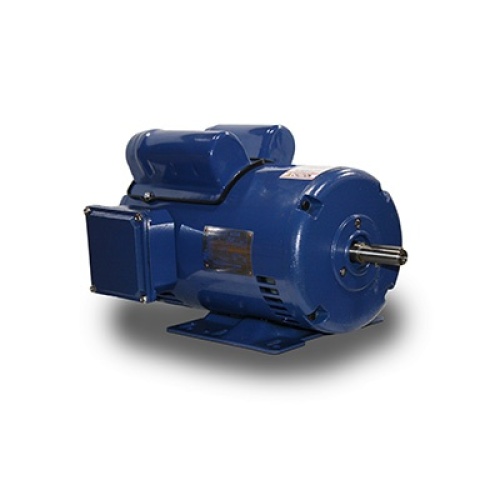

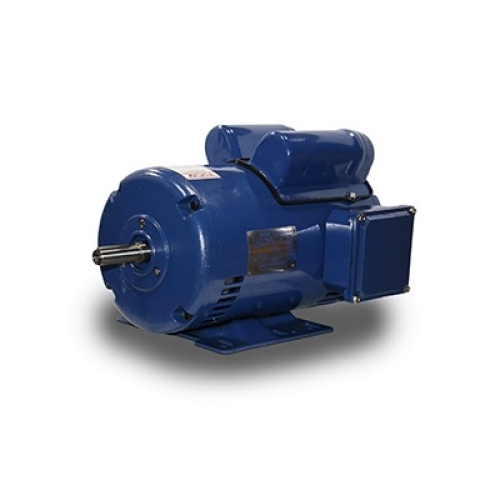

TECO SPH0/24 Motor - 0.25 HP, ODP, 115/208/230 VAC, 1800 RPM, 56 Frame
Normally In Stock
Code: 613137
TECO SPH0/24 Motor - 0.25 HP, ODP, 115/208/230 VAC, 1800 RPM, 56 Frame
Condition: New
Usually ships Same Day or Next Day$287.71
Sale Price
$239.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO SPH0/24 - SINGLE PHASE ODP NEMA PREMIUM
Specifications
Motor RPM's
1800 RPM
Motor Frame Model
56
Motor Horsepower
0.25 HP
Motor Enclosure Type
Open Drip-Proof
Manufacturer
TECO
Motor Voltage
115/208/230 VAC
Features
Output Range: 1/4 – 3 HP
Speed Options: 1800 RPM and 3600 RPM
Enclosure: Open Drip Proof (IP22)
Voltage: 115/208/230V (Tri-Voltage)
Phase: Single Phase, 60 Hz
Service Factor: 1.15 for 115V & 230V
1.0 for 208V
Insulation Class: Class F
Temperature Rise: Class B
Design: Capacitor Start, Capacitor Run
Overload Protection: Automatic Reset Overload
Ambient Temperature: Designed for 40°C
Altitude: Designed for 3300 ft
Rotation: Bi-Directional
Frame: Rolled Steel
Terminal Box: Cast Aluminum
Shaft Material: 1045 Carbon Steel
Rotor Construction: Aluminum Die Cast Squirrel Cage
Paint System: Phenolic Rust Proof Base Plus Lacquer Top Coat
Paint Color: Blue – Munsell 5 PB 3/8
Bearings: Double Shielded Bearings Pre-Packed with Lithium Base Grease
Conduit Box: No Terminals
Lead End Peel-Off Insulation
Grounding: Grounding Terminal Inside Main Box
Nameplate: Stainless Steel
Certifications: UL Recognized for United States and Canada
