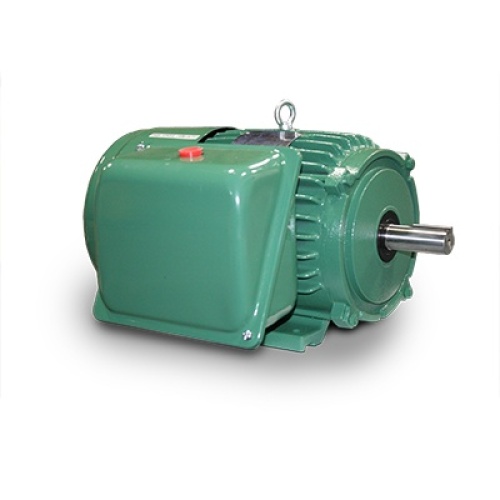

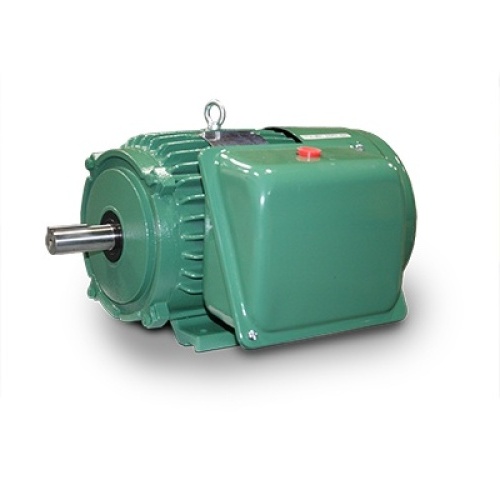

TECO S0/34C Motor - 0.33 HP, TEFC, 115/230 VAC, 1800 RPM, 56C Frame
Normally In Stock
Code: 613121
TECO S0/34C Motor - 0.33 HP, TEFC, 115/230 VAC, 1800 RPM, 56C Frame
Condition: New
Usually ships Same Day or Next Day$473.04
Sale Price
$394.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO S0/34C - SINGLE PHASE TEFC FARM DUTY C-FACE
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor RPM's
1800 RPM
Motor Frame Model
56C
Motor Horsepower
0.33 HP
Manufacturer
TECO
Motor Voltage
115/230 VAC
Features
Output Range: 1/3 – 10 HP
Speed Options: 1800 RPM and 3600 RPM
Voltage: 115/230V (3 HP and larger are 230V only)
Phase: Single Phase, 60 Hz
Enclosure: Totally Enclosed Fan Cooled (TEFC), IP44
Insulation Class: Class B (1/3 to 3 HP) and Class F (1.5 to 10 HP)
Service Factor: 1.15 (Continuous)
Temperature Rise: Class B
Ambient Temperature: Designed for 40°C
Altitude: Designed for 3300 ft
Rotation: Bi-Directional
Frame Construction: Rolled Steel (1/3 to 1 HP) and Cast Iron (1.5 to 10 HP)
Shaft Material: 1045 Carbon Steel
Rotor Construction: Aluminum Die Cast Squirrel Cage
Main Terminal Box: Rolled Steel
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Green – Munsell 5G 4/4
Bearings: Double Shielded Bearings Pre-Packed with MULTEMP SRL (Non-regreasable)
Overload Protection: Manual Reset Overload with Outside Rubber Boot
Grounding Terminal: Inside Main Conduit Box
Certifications: UL Recognized, CSA Approved
