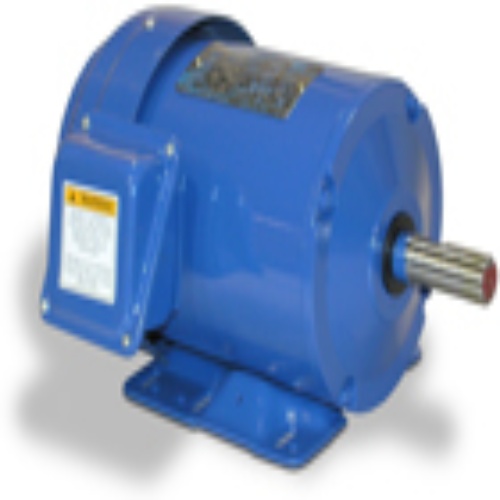

TECO GHV0/32C Motor - 0.33 HP, TEFC, 230/460 VAC, 3600 RPM, 56C Frame
Normally In Stock
Code: 613119
TECO GHV0/32C Motor - 0.33 HP, TEFC, 230/460 VAC, 3600 RPM, 56C Frame
Condition: New
Usually ships Same Day or Next Day$302.95
Sale Price
$252.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO GHV0/32C - ROLLED STEEL TEFC NEMA PREM. ROUND BODY
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor RPM's
3600 RPM
Motor Frame Model
56C
Motor Horsepower
0.33 HP
Manufacturer
TECO
Motor Voltage
230/460 VAC
Features
Output Range: 1/4 – 10 HP
Speed Options: 3600, 1800, and 1200 RPM
Enclosure: Totally Enclosed Fan Cooled (IP44)
Voltage: 230/460V (usable on 200 & 208V)
Frequency: Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
50 Hz, 1.0 Service Factor (Continuous)
Insulation Class: F
Temperature Rise: Class B
Torque Design: NEMA Design B
Frame Construction: Rolled Steel Frame, Fan Cover, and Main Conduit Box
Grounding Terminal: Inside Main Conduit Box
Conduit Box: Oversized Main Conduit Box Rotatable in 90 Degree Increments – F1 Mounted Only (F2 not available)
Ambient Temperature: Designed for 40˚C
Elevation: Designed for 3300 ft.
Rotation: Bi-Directional
End Brackets: Cast Iron
Shaft Material: 1045 Carbon Steel
Rotor Construction: Aluminum Die Cast Squirrel Cage
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
