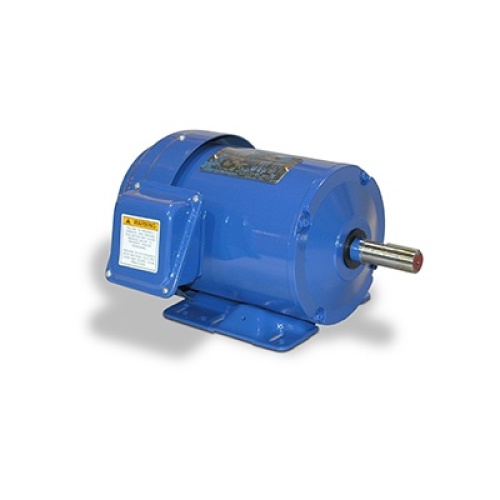

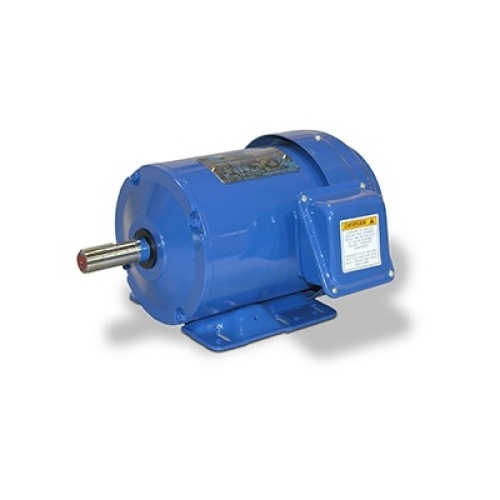

TECO GH0/54 Motor - 0.5 HP, TEFC, 230/460 VAC, 1800 RPM, 56 Frame
Normally In Stock
Code: 613113
TECO GH0/54 Motor - 0.5 HP, TEFC, 230/460 VAC, 1800 RPM, 56 Frame
Condition: New
Usually ships Same Day or Next Day$312.18
Sale Price
$260.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO GH0/54 - ROLLED STEEL TEFC NEMA PREMIUM
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor RPM's
1800 RPM
Motor Horsepower
0.5 HP
Motor Frame Model
56
Manufacturer
TECO
Motor Voltage
230/460 VAC
Features
Output Range: 1/4 – 10 HP
Speed Options: 3600, 1800, and 1200 RPM
Enclosure: Totally Enclosed Fan Cooled (IP44)
Voltage: 230/460V (usable on 200 & 208V)
Frequency: Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
50 Hz, 1.0 Service Factor (Continuous)
Insulation Class: F
Temperature Rise: Class B
Torque Design: NEMA Design B
Frame Construction: Rolled Steel Frame, Fan Cover, and Main Conduit Box
Grounding Terminal: Inside Main Conduit Box
Conduit Box: Oversized Main Conduit Box Rotatable in 90 Degree Increments – F1 Mounted Only (F2 not available)
Ambient Temperature: Designed for 40˚C
Elevation: Designed for 3300 ft.
Rotation: Bi-Directional
End Brackets: Cast Iron
Shaft Material: 1045 Carbon Steel
Rotor Construction: Aluminum Die Cast Squirrel Cage
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
