Code: 612922

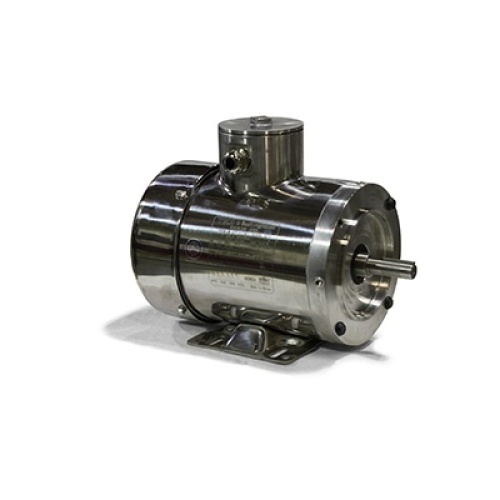

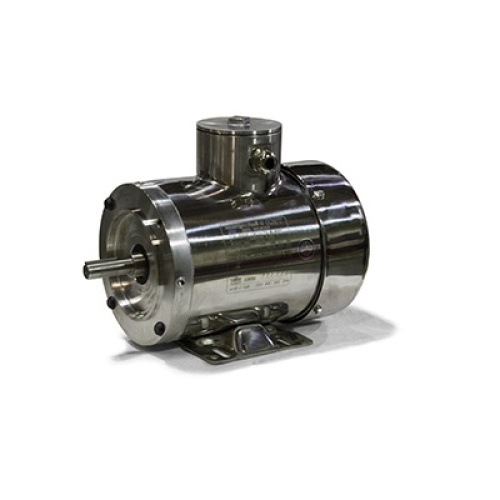

TECO WP0014C Motor - 1 HP, TEFC, 230/460 VAC, 1800 RPM, 143/145TC Frame
Normally In Stock
TECO WP0014C Motor - 1 HP, TEFC, 230/460 VAC, 1800 RPM, 143/145TC Frame
Condition: New
Usually ships Same Day or Next Day$1121.30
Sale Price
$934.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO WP0014C - STAINLESS STEEL WASHDOWN TEFC FOOTED, C-FACE
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
1 HP
Motor RPM's
1800 RPM
Manufacturer
TECO
Motor Voltage
230/460 VAC
Motor Frame Model
143/145TC
Features
Output: 1/2 - 10 HP TEFC
1/2 - 3HP TENV
Speed: 3600 & 1800 RPM
Enclosure: Totally Enclosed Fan Cooled (IP66) (IEEE 45)
and Total Enclosed Non-Ventalted (IP66) (IEEE45), TENV Motor Also Available With Encapsulated Windings (IP66).
Voltage: 230/460V (Usable on 208V)
Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
50 Hz, 1.0 Service Factor (Continuous)
Class F Insulation
Class B Temperature Rise
NEMA Design B Torques
Stainless Steel Frame, End Brackets and Hardware
Grounding Terminal Inside Main Conduit Box
Stainless Steel Oversized Main Conduit Box - F3 Mounted for TEFC Footed, F1 Mounted for TEFC, and F1 Mounted for TENV Footed
Designed for 40˚C Ambient Temperature 1
Designed for 3300 ft. Elevation 2
Bi-Directional Rotation
SUS304 Stainless Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction
Double Shielded Bearings Pre-Packed with POLYREX EM
Contact Lip Type Seal on Both Ends
Etched Nameplate on the Stainless Steel Frame
Dual Column Design Nameplate as Standard (60/50 Hz)
Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2 (3,4)
Inverter Duty Speed Range: 10:1 Variable Torque, 4:1 Constant Torque
9 Leads
Four Drain Holes on DE/NDE brackets
Motors are U.L. Recognized, CSAApproved and CE Marked
Department of Energy Efficiency Certificate # CC082A
Encapsulated windings available for all Washdown motors (6)
IP69K available for all Washdown motors
BISSC third party varified
