Code: 612918

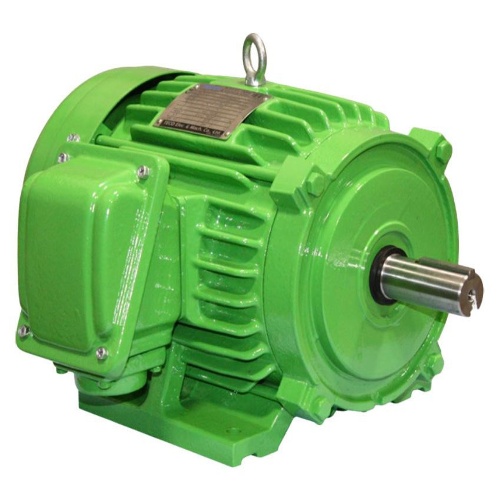

TECO PM1/54C Motor - 1.5 HP, 230/460 VAC, 1800 RPM, 145T Frame
Normally In Stock
TECO PM1/54C Motor - 1.5 HP, 230/460 VAC, 1800 RPM, 145T Frame
Condition: New
Usually ships Same Day or Next Day$838.37
Sale Price
$698.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO PM1/54C - PERMANENT MAGNET MOTOR
Specifications
Motor Horsepower
1.5 HP
Motor RPM's
1800 RPM
Manufacturer
TECO
Motor Voltage
230/460 VAC
Motor Frame Model
145T Frame
Features
Output Range: 1 – 30 HP
Speeds Available: 3600, 1800, 1200 RPM
Enclosure Type: Totally Enclosed Fan Cooled (IP55)
Voltage: 230/460V
Phase: Three Phase, 60 Hz
Service Factor: 1.0 (Continuous)
Insulation: Class F
Temperature Rise: Class B
Efficiency Level: IE4
Frame Construction: Cast Iron
End Brackets: Cast Iron
Conduit Box: Oversized, Rotatable in 90° Increments
Mounting: F1 Mounted, F2 Convertible
Grounding Terminal: Inside Main Conduit Box
Ambient Temperature: Designed for 40°C
Altitude: Designed for 3300 ft
Rotation: Bi-Directional
Shaft Material: 1045 Carbon Steel
Rotor Construction: Permanent Magnet (NdFeB)
Bearings: Double Shielded, Pre-Packed with MULTEMP SRL
Nameplate: Stainless Steel
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Green – Munsell 10GY 5/12
Starting Method: Controlled by Permanent Magnet Synchronous Motor Drive
Over Torque: 150% Rated Torque for 60 Seconds
Leads: 9 Leads
Drain Holes: Two Drain Holes on Bottom of Frame
Certifications: cCSAus Approved, CE Marked
