Code: 612904

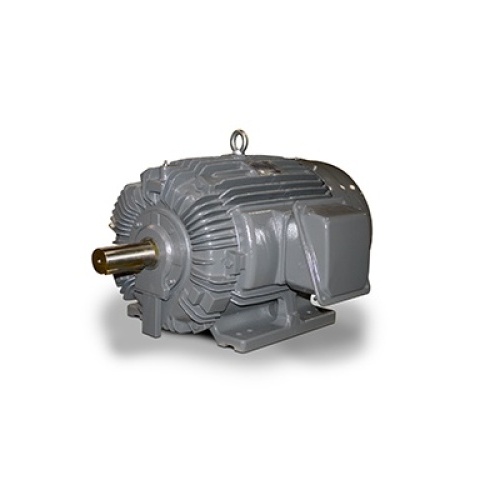

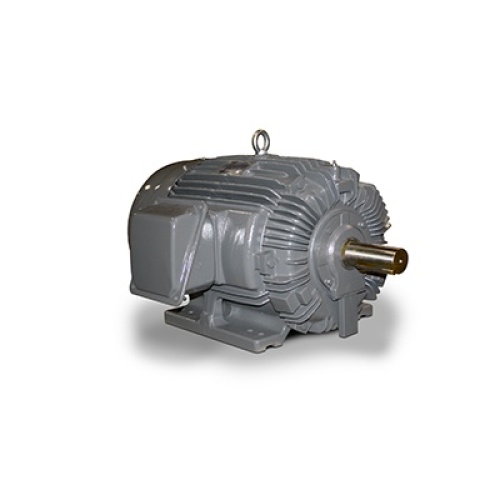

TECO NP1/54C Motor - 1.5 HP, TEFC, 230/460 VAC, 1800 RPM, 143/145TC Frame
Normally In Stock
TECO NP1/54C Motor - 1.5 HP, TEFC, 230/460 VAC, 1800 RPM, 143/145TC Frame
Condition: New
Usually ships Same Day or Next Day$460.74
Sale Price
$383.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO NP1/54C - MAX-PE NEMA PREM EFF SEVERE. TEFC FOOTED C-FACE
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
1.5 HP
Motor RPM's
1800 RPM
Manufacturer
TECO
Motor Voltage
230/460 VAC
Motor Frame Model
143/145TC
Features
Output Range: 1 – 200 HP
Speed: 3600, 1800 & 1200 RPM
Enclosure: Totally Enclosed Fan Cooled (IP54)
Voltage: 230/460V (Usable on 208V)
150HP and Larger is 460V Only
Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
50 Hz, 1.0 Service Factor (Continuous)
Class F Insulation
Class B Temperature Rise
NEMA Design B Torques as a Minimum
Various Ratings also Meet Design C
Cast Iron Frame and End Brackets
Rolled Steel Fan Cover and Main Conduit Box
Grounding Terminal Inside Main Conduit Box
Oversized Main Conduit Box Rotatable in 90 Degree Increments – F1 Mounted
Designed for 40°C Ambient Temperature
Designed for 3300 ft. Elevation
Bi-Directional Rotation
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Dark Gray – Munsell 7.5B 3.5/0.5
Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T – 280T (Non-regreasable)
High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM for F# 280TS and Larger
Automatic Grease Discharge Fittings on Regreasable Models
Labyrinth Type Metal Flinger on Both Ends for F# 280TS and Larger
Cast Iron Inner and Outer Bearing Caps for F# 280TS and Larger
Stainless Steel Nameplate
New Dual Column Design Nameplate as Standard (60/50 Hz)
Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
9 Leads for 5 HP and Smaller
12 Leads for 7.5 HP and Larger
Motors are U.L. Recognized for United States and Canada, CSA Approved and CE Marked
