Code: 612599

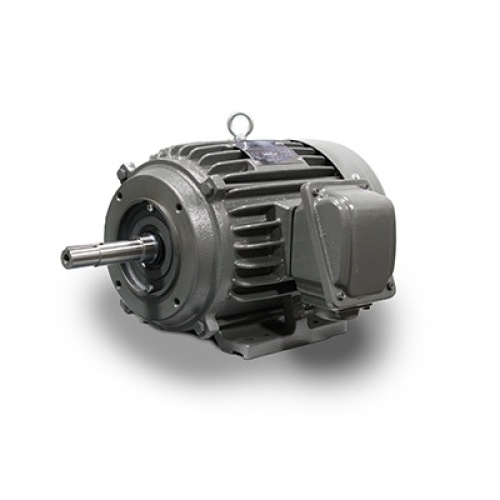

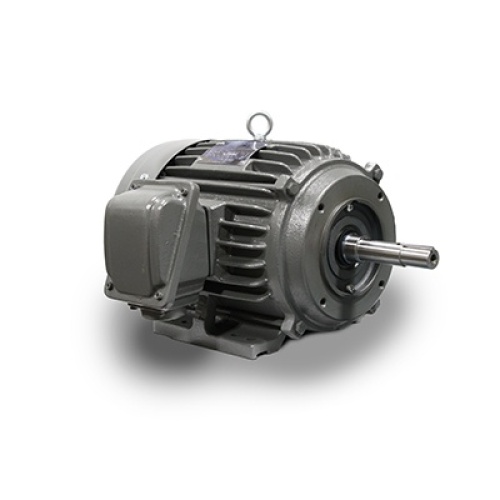

TECO JMP0022 Motor - 2 HP, TEFC, 230/460 VAC, 3600 RPM, 143/145JM Frame
Normally In Stock
TECO JMP0022 Motor - 2 HP, TEFC, 230/460 VAC, 3600 RPM, 143/145JM Frame
Condition: New
Usually ships Same Day or Next Day$687.89
Sale Price
$573.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO JMP0022 - CLOSED COUPLED PUMP TEFC JM
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
2 HP
Motor RPM's
3600 RPM
Manufacturer
TECO
Motor Voltage
230/460 VAC
Motor Frame Model
143/145JM
Features
Output Range: 3/4 – 50 HP
Speed: 3600, 1800 & 1200 RPM
Enclosure: Totally Enclosed Fan Cooled (IP54)
Voltage: 230/460 V (usable on 208 V)
Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
50 Hz, 1.0 Service Factor (Continuous)
CSA Certified for Class I, Div. 2, Groups B, C & D – Temp Code T3C Minimum
Class F Insulation
Class B Temperature Rise
NEMA Design B Torques
Cast Iron Frame, End Brackets, Fan Cover, and Main Conduit Box
Grounding Terminal Inside Main Conduit Box
Oversized Main Conduit Box Rotatable in 90° Increments – F1 Mounted
Designed for 40 °C Ambient Temperature
Designed for 3300 ft. Elevation
Bi‑Directional Rotation
1045 Carbon Steel Shaft
Aluminum Die-Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Premium – Light Gray – Munsell N5.0
High Efficient – Dark Gray – Munsell 7.5B 3.5/0.5
Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140JP/JM – 280JP/JM (Non-regreasable)
High‑Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex EM for F# 280JP/JM (2P), 320JP/JM and Larger
Automatic Grease Discharge Fittings on Regreasable Models
Rubber Dust Flinger on DE for F# 140JP/JM – 280JP/JM
Labyrinth Type Metal Flinger on Both Ends for F# 280JP/JM (2P), 320JP/JM and Larger
Cast Iron Inner and Outer Bearing Caps for Frame # 280JP/JM (2P), 320JP/JM and Larger
Stainless Steel Nameplate
New Dual-Column Design Nameplate as Standard (60/50 Hz)
Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
Inverter Duty Speed Range: 10:1 Variable Torque, 5:1 Constant Torque
9 Leads for 5 HP and Smaller
12 Leads for 7.5 HP to 125 HP
Motors are U.L. Recognized, CSA Approved, and CE Marked
