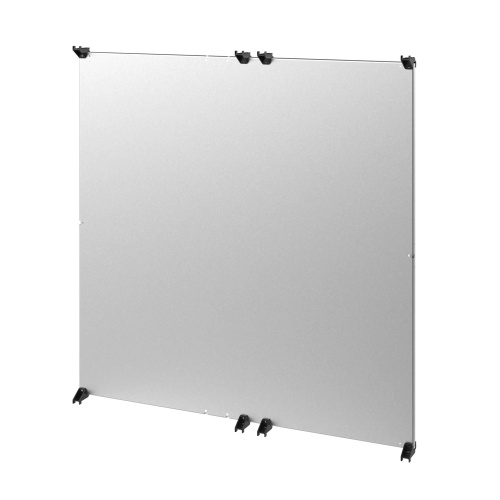

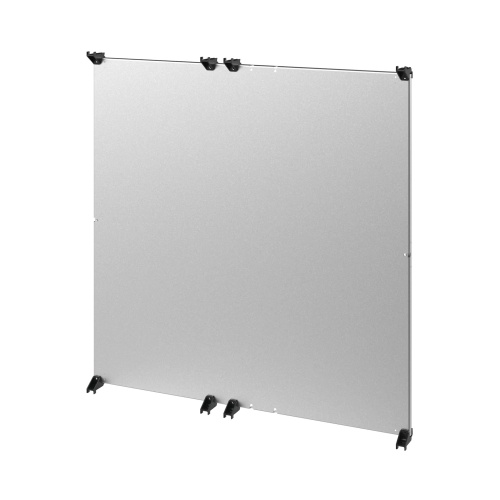

nVent Hoffman P2PD1616G PROLINE G2 Disconnect Mounting Subpanel
Normally In Stock
Code: 61247
nVent Hoffman P2PD1616G PROLINE G2 Disconnect Galvanized Mounting Subpanel fits 1600mm x 1600mm
Condition: New
Usually ships Same Day or Next Day$736.46
Sale Price
$613.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PROLINE G2 Disconnect Components are used with PROLINE G2 Disconnect Frames and Doors to configure a custom Disconnect Enclosure Solution. These components are identical to the standard PROLINE G2 components like PROLINE G2 Solid Tops, Gland Plates, and Mounting Subpanel.
Specifications
Component
Subpanel
Sub Component
Proline G2 Disconnect Mounting Subpanel
Panel Composition
Galvanized Steel
Panel Height
1600 mm
Panel Width
1600 mm
Line
PROLINE G2
Manufacturer
Hoffman
Features
Disconnect mounting subpanel comes standard with Disconnect Package
Includes eight sets of EZ-Load Glide Blocks, BV-M6 and Hex Bolts for securing
Similar in construction and function to the standard mounting subpanel, but with 100mm offset mounting holes near the middle of the subpanel, due to the presence of the disconnect mullion door in the enclosure solution
10 gauge (3.0 mm) mild steel, conductive plated option only
Disconnect specific mounting subpanels are required for frames greater than 1000mm in width, any width 1000mm or less uses a standard mounting subpanel
