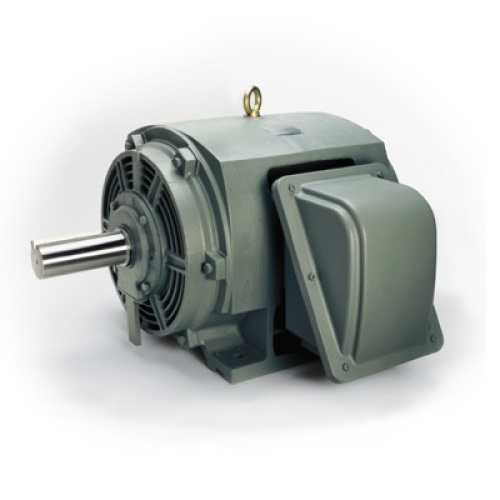

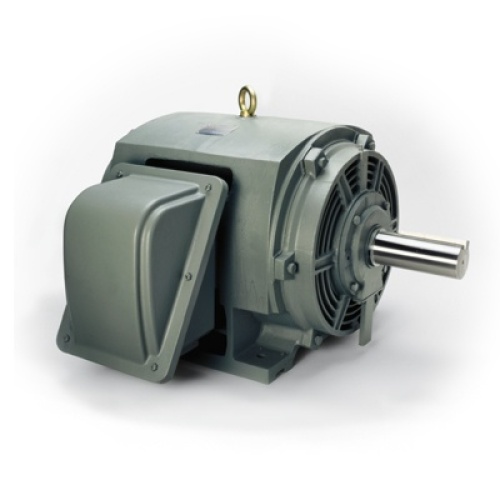

TECO DHP0204G Motor - 20 HP, ODP, 230/460 VAC, 1800 RPM, 256T Frame
Normally In Stock
Code: 612076
TECO DHP0204G Motor - 20 HP, ODP, 230/460 VAC, 1800 RPM, 256T Frame
Condition: New
Usually ships Same Day or Next Day$1832.88
Sale Price
$1527.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO DHP0204G - NEMA PREMIUM EFFICIENCY ODP SGR
Specifications
Motor Frame Model
256T
Motor Horsepower
20 HP
Motor RPM's
1800 RPM
Motor Enclosure Type
Open Drip-Proof
Manufacturer
TECO
Motor Voltage
230/460 VAC
Features
Output range: 1–800 HP
Speeds: 3600, 1800, 1200 RPM
Enclosure: Open Drip Proof (ODP, IP22)
Voltage: 230/460 V (usable on 208 V)
motors 150 HP and larger are 460 V only
Three-phase, 60 Hz
1.15 service factor (60 Hz continuous), 1.0 at 50 Hz continuous
Insulation: Class F, Class B temperature rise
NEMA Design B torque
Cast iron frame and end brackets
Rolled steel main conduit box
Grounding terminal inside main conduit box
Oversized rotatable conduit box (90° increments), F1 mount standard
Rated for 40 °C ambient and up to 3,300 ft elevation
Bi‑directional rotation
Shaft: 1045 carbon steel
Rotor: aluminum die‑cast squirrel‑cage
Paint: phenolic rust-proof base with polyurethane top coat (light gray, Munsell N5.0)
Bearings: double‑shielded (140T–280T, non‑regreasable pre‑packed) and regreasable ball/roller (≥280TS) with Mobil Polyrex EM
Seals: labyrinth metal flingers on both ends for 280TS and larger
cast‑iron bearing caps for 280TS+
Stainless steel nameplate (dual‑column for 60/50 Hz units)
“Premium” efficiency
inverter‑rated per NEMA MG‑1.4.4.2 Part 31
PWM compatible
Inverter-duty speed range: 20:1 variable-torque, 10:1 constant-torque
Leads: 9 leads for ≤5 HP
12 leads for 7.5–125 HP
6 leads for ≥150 HP
UL recognized, CSA approved, CE marked for applicable frames
