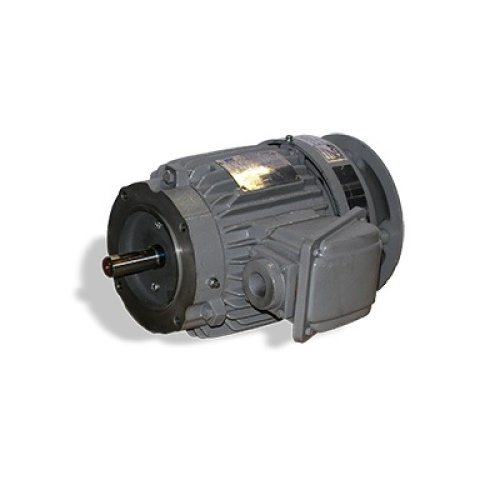

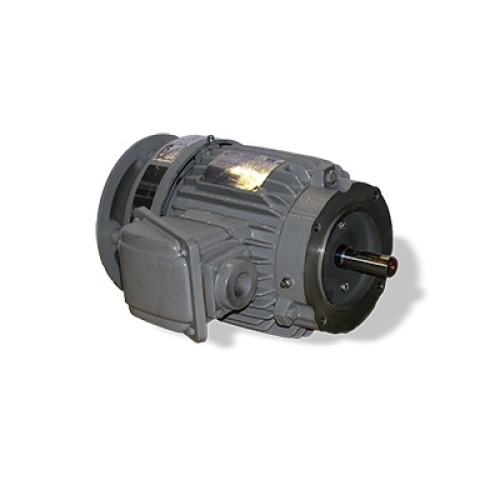

TECO EPV0402C Motor - 40 HP, TEFC, 230/460 VAC, 3600 RPM, 324TSC Frame
Normally In Stock
Code: 611834
TECO EPV0402C Motor - 40 HP, TEFC, 230/460 VAC, 3600 RPM, 324TSC Frame
Condition: New
Usually ships Same Day or Next Day$4793.11
Sale Price
$3994.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO EPV0402C - MAX E1 ROUND BODY C- FACE NEMA PREM TEFC
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
40 HP
Motor Frame Model
324TSC
Motor RPM's
3600 RPM
Manufacturer
TECO
Motor Voltage
230/460 VAC
Features
Output Range: 3/4 – 800 HP
Speed Options: 3600, 1800, 1200, and 900 RPM
Enclosure: Totally Enclosed Fan Cooled (IP54 for 280 Frames and below
IP55 for 280TS Frames and above)
Voltage: 230/460V (usable on 208V)
150 HP and larger are 460V only
Frequency: Three-phase, 60 Hz, 1.15 service factor (continuous)
50 Hz, 1.0 service factor (continuous)
CSA Certification: Class I, Div. 2, Groups B, C, D – Temp Code T3 minimum
CSA Certification: Class II, Div. 2, Groups F & G – Temp Code T3 minimum (444T and above)
Insulation Class: F
Temperature Rise: Class B
Torque Design: NEMA Design B torques as a minimum
various ratings also meet Design C
Frame Construction: Cast iron frame, end brackets, fan cover, and main conduit box
Grounding Terminal: Inside main conduit box
Conduit Box: Oversized main conduit box rotatable in 90-degree increments – F1 mounted
Ambient Temperature: Designed for 40°C
Altitude: Designed for 3300 ft. elevation
Rotation: Bi-directional rotation
except 2-pole "Hybrid" and F# 5000 and larger ratings are counter-clockwise facing the drive end
Shaft Material: 1045 carbon steel
Rotor Construction: Aluminum die-cast squirrel cage rotor construction for F# 140T - 449T
copper/copper alloy rotor construction for F# 5000 and larger
Paint System: Phenolic rust-proof base plus polyurethane top coat
Paint Color: Light gray - Munsell N5.0
Bearings: Double shielded bearings pre-packed with MULTEMP SRL for F# 140T - 280T (non-regreasable)
Bearing Caps: Cast iron bearing caps on 320T frame and above
Seals: Labyrinth metal flinger seals on 440T and larger frames
gamma (axial face) seals on 140T to 400T frames
Drain Plugs: In both end brackets
Breather Drains: Threaded breather drains included for horizontal mounting
Nameplate: Stainless steel nameplate with dual-column layout for dual frequency ratings
Fan Cover: Rolled steel fan cover
Grounding Terminal: Inside conduit box with additional grounding provisions on large frames
Conduit Box: Oversized and rotatable in 90-degree increments
Mounting: Designed for continuous duty and harsh environments
