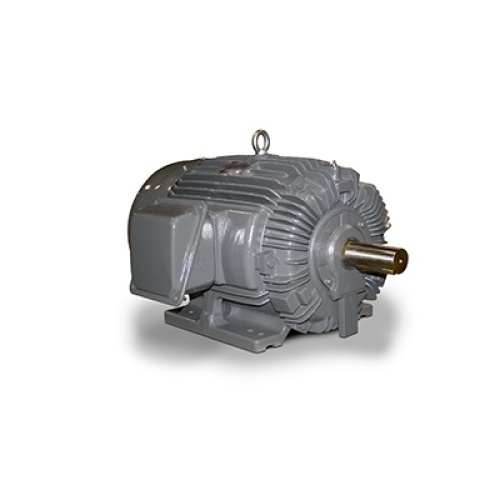

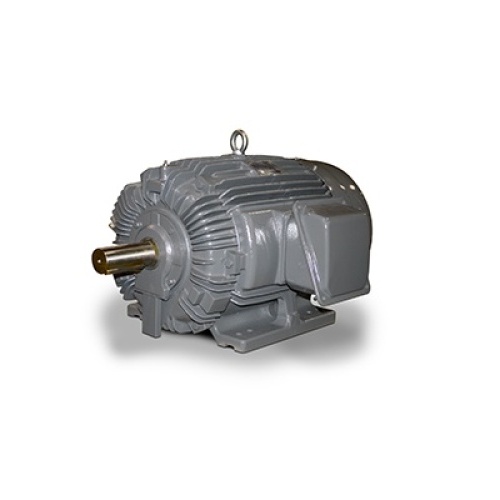

TECO NP1504R Motor - 150 HP, TEFC, 460 VAC, 1800 RPM, 444/445T Frame
Normally In Stock
Code: 611172
TECO NP1504R Motor - 150 HP, TEFC, 460 VAC, 1800 RPM, 444/445T Frame
Condition: New
Usually ships Same Day or Next Day$12002.26
Sale Price
$10001.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO NP1504R - MAX-PE NEMA PREM EFF SEVERE. TEFC INVERTER DUTY
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
150 HP
Motor RPM's
1800 RPM
Motor Voltage
460 VAC
Manufacturer
TECO
Motor Frame Model
444/445T
Features
Output Range: 1 - 200 HP
Speed Options: 3600, 1800, & 1200 RPM
Enclosure: Totally Enclosed Fan Cooled (IP54)
Voltage: 230/460V (Usable on 208V)
150HP and Larger is 460V Only
Frequency: 60 Hz
Service Factor: 1.15 (Continuous on Sine Wave Power)
50 Hz, 1.0 Service Factor (Continuous)
CSA Certified: Class I, Div. 2, Groups B, C, D - Temp Code T3C Minimum
Insulation: Class F
Temperature Rise: Class B
NEMA Design B Torques: As a Minimum
Various Ratings also Meet Design C
Frame & Brackets: Cast Iron Frame and End Brackets
Rolled Steel Fan Cover and Main Conduit Box
Grounding Terminal: Inside Main Conduit Box
Conduit Box: Oversized, Rotatable in 90° Increments - F1 Mounted
Ambient Temperature: Designed for 40˚C
Elevation: Designed for 3300 ft.
Rotation: Bi-Directional
Shaft: 1045 Carbon Steel
Rotor Construction: Aluminum Die Cast Squirrel Cage
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Dark Gray - Munsell 7.5B 3.5/0.5
Bearings: Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T - 280T (Non-regreasable)
High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM for F# 280TS and Larger
