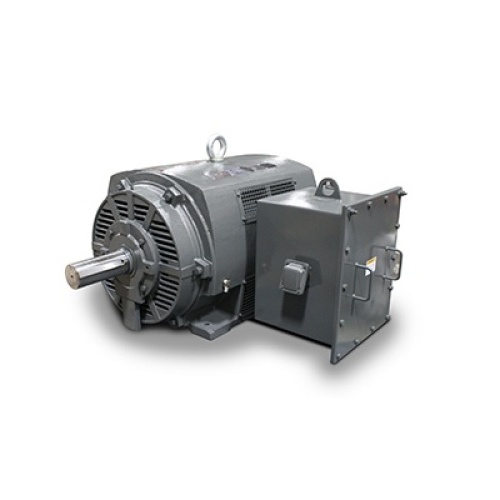

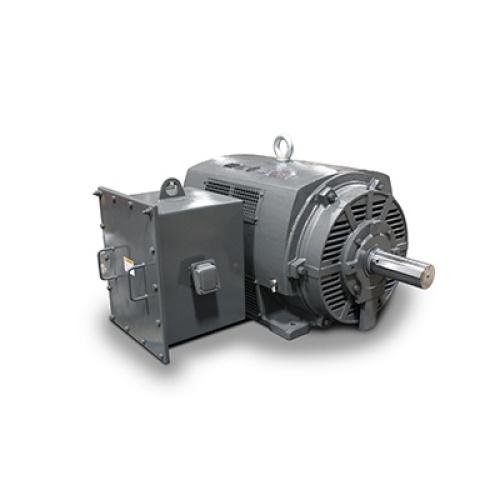

TECO PG1006 Motor - 100 HP, ODP, 2300/4000 VAC, 1200 RPM, 447T Frame
Normally In Stock
Code: 611163
TECO PG1006 Motor - 100 HP, ODP, 2300/4000 VAC, 1200 RPM, 447T Frame
Condition: New
Usually ships Same Day or Next Day$26137.73
Sale Price
$21781.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO PG1006 - GLOBAL MAX WP1, PREMIUM EFFICIENCY
Specifications
Motor Horsepower
100 HP
Motor Frame Model
447T
Motor RPM's
1200 RPM
Motor Enclosure Type
Open Drip-Proof
Manufacturer
TECO
Motor Voltage
2300/4000 VAC
Features
Output Range: 100 – 2000 HP
Speed: 3600, 1800, 1200 & 900 RPM
Enclosure: Weather Protected Type I (WPI)
Voltage: 2300/4000 V
Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
CSA Certified for Class I, Division 2, Groups B, C, D – Temp Code T3 Minimum
CSA Certified for Class II, Division 2, Groups F & G – Temp Code T3 Minimum
Standard Features: 100 Ohm Platinum Stator RTD’s (2 per Phase), Space Heaters (120 V)
Class F Insulation
Class B Temperature Rise
NEMA Design B Torques
Oversized Main Conduit Box Rotatable in 90 Degree Increments, Fully Gasketed with NPT Threaded Entrance – F1 Mounted
Designed for 40°C Ambient Temperature
Designed for 3300 ft. Elevation
Rotation: Bi-Directional Except 2-Pole which is Counter-Clockwise (CCW) facing the Drive End
Cast Iron Frame and End Brackets
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction for Frame 449T and Below
Squirrel Cage Copper or Copper Alloy Bar Rotor Construction for Frames 5007 and Larger
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Dark Gray – Munsell 7.5B 3.5/0.5
High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM
Bronze Labyrinth Type Metal Flinger on Both Ends
Cast Iron Inner and Outer Bearing Caps
Stainless Steel Nameplate
6 Leads with Solderless Lug Terminals
Motors are CSA Approved
Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
