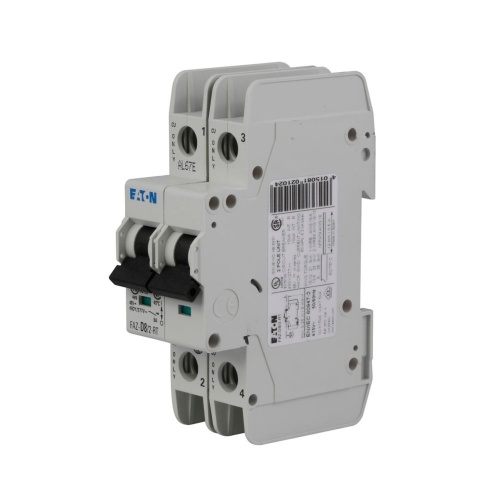

Eaton FAZ-D7/2 Mini CB - 7 Amp, Two Pole, 277 VAC, D Curve
Normally In Stock
Code: 609602
Eaton FAZ-D7/2 - FAZ supplementary protector,UL 1077 Industrial miniature circuit breaker - supplementary protector,High levels of inrush current are expected,7 A,15 kAIC,Two-pole,10-20X /n,50-60 Hz,Standard terminals,D Curve
Condition: New
Usually ships Same Day or Next Day$131.65
Sale Price
$109.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton FAZ-D7/2 - FAZ supplementary protector,UL 1077 Industrial miniature circuit breaker - supplementary protector,High levels of inrush current are expected,7 A,15 kAIC,Two-pole,10-20X /n,50-60 Hz,Standard terminals,D Curve - Magnetic range for higher startup inrush levels that are usually seen in motors and transformers, and other high inductive systems.
Specifications
Breaker Amperage Rating
7 Amp
Breaker Number of Poles
Two Pole
Breaker Voltage Rating
277 VAC
Component
Miniature Circuit Breaker
Manufacturer
Eaton
Breaker UL Rating
UL 1077
Breaker Trip Speed
D Curve
Features
Designed for highly inductive loads
Response time of instantaneous trip: 10–20X I n current rating
UL recognized and CSA Certified as supplementary protectors
For international and domestic use (conform to IEC 60947-2)
UL file number 17745
