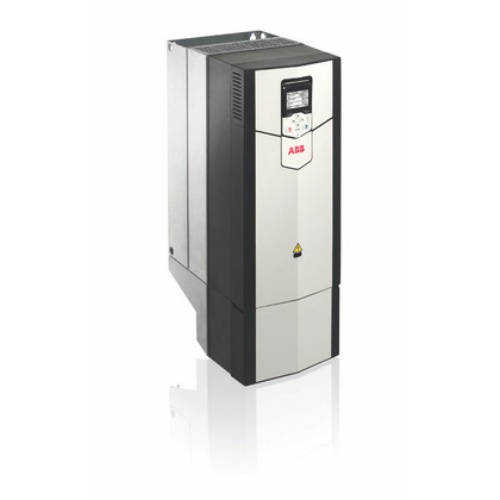

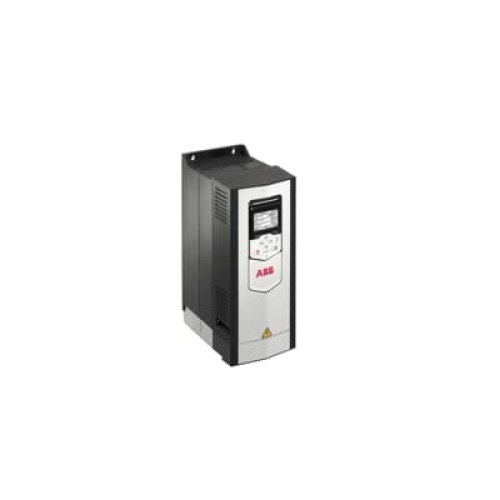

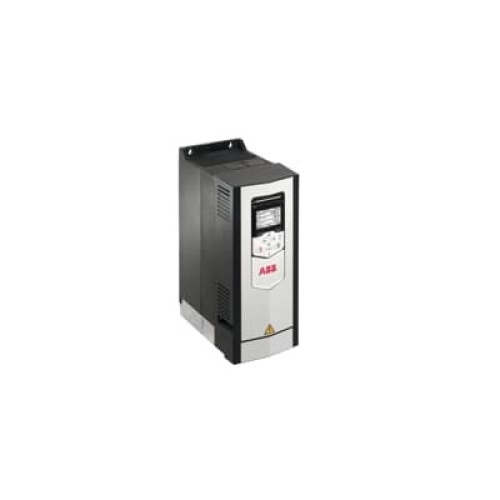

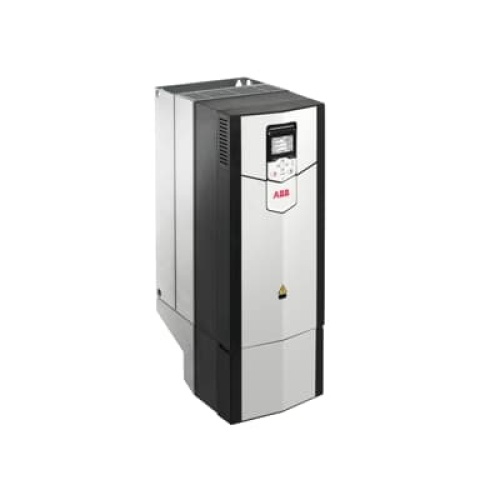

ABB ACS880-01-156A-5 Three Phase, 100 HP, 124 Amp (Constant), 380-500 Volt, IP21, NEMA 1

The ABB Drives ACS880 Series offers a 100 HP constant torque and 125 HP variable torque rating, with a NEMA 1 enclosure and IP21 rating for protection. Input voltage range of 380-500 VAC, 3-phase operation, and maximum frequency of 500 Hz. Operator keypad included, with Direct Torque Control and optional closed-loop system. Panel mounted in R7 frame size.

Specifications
VFD Torque	Constant Torque
VFD Amperage Output	124 Amp
VFD Horsepower Output	100 HP
VFD Amperage Output	156 Amp
VFD Horsepower Output	125 HP
Manufacturer	ABB
VFD NEMA-IP Rating	NEMA 1
VFD NEMA-IP Rating	IP21
VFD Control Panel	Keypad Included
VFD Input Voltage	380-500 Volt Three Phase
VFD Output Voltage	380-500 Volt Three Phase
VFD Frame Type	R7
VFD Line	ACS880 Series
