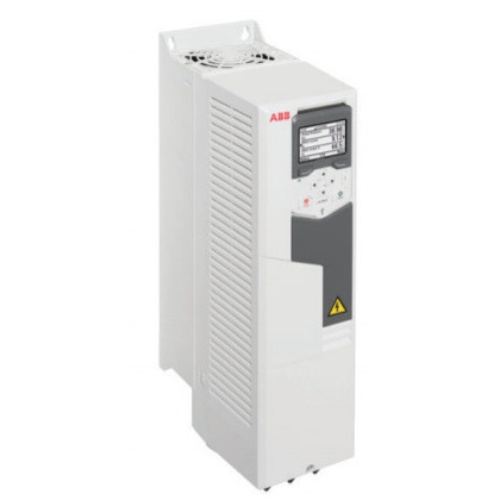

ABB ACS580-01-156A-4 Three Phase, 100 HP, 124 Amp, 380-500 Volt, IP21, NEMA 1
Normally In Stock
Code: 606622
ABB ACS580-01-156A-4 - ACS580 Series - 100 HP - 124 Amp - IP21 - 380-500 Volt Three Phase - Operator Controls: Keypad Included - 500 Hz - Open Loop Vector (Sensorless Vector) - Panel Mounting - R7R4 Frame
Condition: New
Usually ships Same Day or Next Day$15002.82
Sale Price
$12502.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ABB Drives ACS580 Series offers a Constant Torque rating of 100 hp with an input range voltage of 380-500 VAC. This NEMA 1 rated drive features a IP21 rating, keypad controls, and a max frequency of 500 Hz. With a frame size of R7, it is ideal for panel mounting applications.
Specifications
VFD Torque
Constant Torque
VFD Amperage Output
124 Amp
VFD Horsepower Output
100 HP
VFD Amperage Output
156 Amp
VFD Horsepower Output
125 HP
Manufacturer
ABB
VFD NEMA-IP Rating
NEMA 1
VFD NEMA-IP Rating
IP21
VFD Control Panel
Keypad Included
VFD Input Voltage
380-500 Volt Three Phase
VFD Output Voltage
380-500 Volt Three Phase
VFD Line
ACS580 Series
VFD Frame Type
R7
Features
The wall-mounted ACS580-01 is available as UL Type 1 (IP21), Type 12 (IP55) and Type 4X (IP66) designed for OEM and end users who value high quality and robustness in their applications. Coated control boards, high enclosure classes, and motor temperature monitoring ensure processes will run smoothly even in harsh conditions. This drive is part of ABB’s all-compatible drives portfolio, sharing the same control panel, PC tools, parameter structure and communications options as the ACS380/180 and ACS880.
Learn it once
use it everywhere. With both V/Hz and sensorless vector control supporting most motor types such as induction, permanent magnet, synchronous reluctance, and optimum pole motors the ACS580 is ideal for use on compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and other variable and constant torque applications, in a variety of industries, including food and beverage, plastic, textile, material handling, and agriculture
