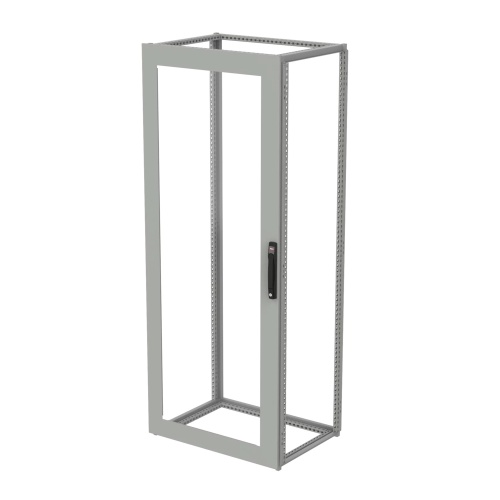

nVent Hoffman P2DW148 PROLINE G2 Window Doors
Code: 60063
nVent Hoffman P2DW148 1400 mmx800 mm PROLINE G2 Window Doors
Condition: New
Usually ships Same Day or Next Day$1452.31
Sale Price
$1210.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman P2DW148 PROLINE G2 Window Doors PROLINE G2 Window Doors can be used to enable viewing of electronic equipment. Featuring clean contemporary lines, they are available in clear safety glass or polycarbonate and include a standard door bar system for easy accessory attachment. The Smooth Glide latching system is made from high-quality components and features an innovative timed latch action which ensures a solid door seal with a low closure force.
Specifications
Enclosure Interior Color
Gray
Door-Cover Finish
Steel
Door-Cover Location
Front
Door-Cover Location
Rear
Door-Cover-Window Composition
Steel
Door-Cover For Frame Width
800 mm
Door-Cover For Frame Height
1400 mm
Door-Cover Type
Window
Door-Cover-Window Composition
Polycarbonate
Component
Window Door
Line
PROLINE G2
Manufacturer
Hoffman
Features
0.25 in. (6.35 mm) thick window to provide maximum protection and viewing area
Clean, contemporary design
Window doors available for frames up to 1000 mm wide
Standard door bar system on all window doors for easy accessories attachment
Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetime
Safety glass or polycarbonate (for food and beverage applications)
Low-profile Swing Handle with key lock, other options available
3-point latch system for doors ≥ 1000mm in height
Durable, double-flanged latch rod and three Delrin® rollers to prevent metal-on-metal grinding
Timed latch engagement to ensure top and bottom of door catch reliably
Seamless polyurethane gasket (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
Doors can be hinged on left or right (default left)
14-degree hinging standard (180-degree hinge option available)
Can be used on front or rear of the ProLine G2 frame, can be used on the sides with side door adapter (not included)
Two grounding studs
All mounting hardware included
Door can be reversed without removing the side covers
