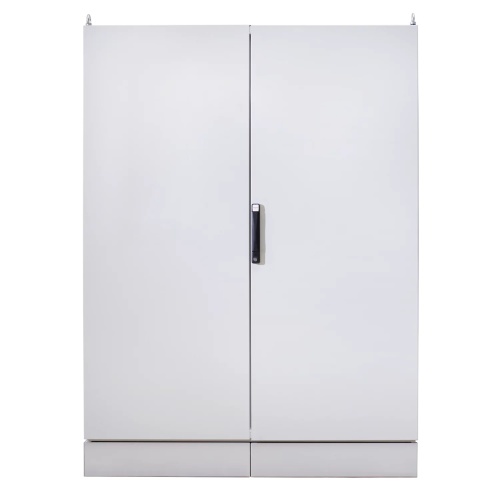

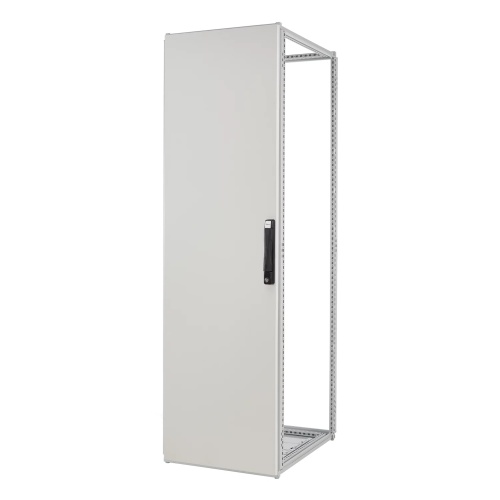

nVent Hoffman P2DO168 PROLINE G2 Solid Doors (Single or Overlapping Double)
Code: 60015
nVent Hoffman P2DO168 1600 mmx800 mm PROLINE G2 Solid Doors (Single or Overlapping Double)
Condition: New
Usually ships Same Day or Next Day$1418.33
Sale Price
$1181.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman P2DO168 PROLINE G2 Solid Doors (Single or Overlapping Double) PROLINE G2 Solid Doors (Single or Overlapping Double) feature a solid swing and a high load capacity. The Smooth Glide latching system is made from quality components and incorporates an innovative timed latch action ensuring a solid door seal with a low closure force. Sold individually.
Specifications
Enclosure Interior Color
Gray
Door-Cover Finish
Steel
Door-Cover Type
Solid
Door-Cover Location
Front
Door-Cover Location
Rear
Door-Cover-Window Composition
Steel
Door-Cover For Frame Width
800 mm
Door-Cover For Frame Height
1600 mm
Door-Cover Type
Overlapping
Component
Solid Door
Line
PROLINE G2
Manufacturer
Hoffman
Features
Overlapping double doors available for frames 800 mm wide and greater
Seamless polyurethane gasket (UL Component Recognized) provides a water-tight, dust-tight seal against moisture and contaminants
Single doors available for frames up to 1000 mm wide
Door bar system on all doors
Low-profile Swing Handle with key lock, other options available
Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetime
Timed latch engagement to ensure top and bottom of door catch reliably
Single doors can be hinged on left or right (default left), overlapping double doors can have the primary door as the left or right door (default right)
Key lock handle standard, other options available
3-point latch system for doors ≥ 1000 mm in height
Durable, double-flanged latch rod and three Delrin® rollers to prevent metal-on-metal grinding
Overlapping Double Doors – Additional Specifications: Primary door with Smooth Glide latching system, Secondary door has two latch points with a center lever to ensure secure door closure
Solid Doors are finished with paint over plated surfaces
140-degree hinging standard (180-degree hinge option available)
Can be used on front or rear of enclosure, can be used on the sides of enclosure with side door adapter (not included)
Two grounding studs
All mounting hardware included
Sold individually
Door can be reversed without removing the side covers
