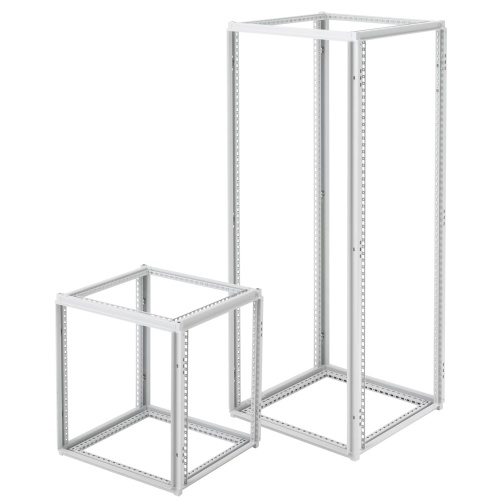

nVent Hoffman PF20105HF EMC Frames
Code: 59932
nVent Hoffman PF20105HF 79"x40"x20" Free Standing Modular Enclosure Solutions
Condition: New
Usually ships Same Day or Next Day$2631.60
Sale Price
$2193.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman PF20105HF EMC Frames
Specifications
Frame Composition
Steel
Frame Enclosure Type
Free-Standing
Frame Number of Doors
2 Door
Frame Enclosure Depth
20"
Frame Enclosure Depth mm
500 mm
Frame Enclosure Width mm
1000 mm
Frame Enclosure Height
79"
Frame Enclosure Height mm
2000 mm
Frame Enclosure Width
40"
Component
Frame
Line
PROLINE
Manufacturer
Hoffman
Features
Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
Plated finish for corrosion resistance and effective cover grounding
Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
Integral frame channels support the full weight of the mounting subpanel (sold separately)
Open roll-formed profile design affords complete surface corrosion protection and assembly access
12 gauge (2.5mm), roll-formed steel frame with welded steel corners
Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
Appropriate metal-impregnated gasket door(s) and covers are required to maintain environmental rating while electrically bonded to frame, sold separately
Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
