Code: 59755

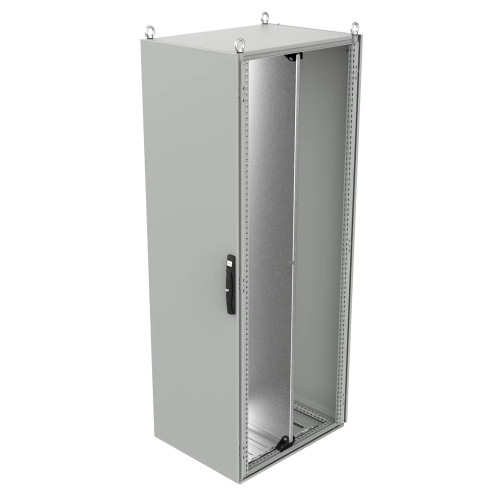

nVent Hoffman P2K1886T3R PROLINE G2 Industrial Modular Enclosure Packages
nVent Hoffman P2K1886T3R 70.94"x31.8"x23.82" Type 3R,Type 12 Outdoor-Indoor Free Standing Modular Enclosure Solutions
Condition: New
Usually ships Same Day or Next Day$3397.96
Sale Price
$2831.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman P2K1886T3R PROLINE G2 Industrial Modular Enclosure Packages PROLINE G2 Type 3R Industrial packages are pre-packaged enclosure “starter kits” that make it unnecessary to order each component separately. For convenience, a single part number includes a frame, solid door(s), padlockable handle, a solid top, a solid rear cover, a full mounting sub-panel, a gland plate, and four lifting eyes. Side covers and side cover hardware kits ordered separately to accommodate joining-baying applications.
Specifications
Enclosure Composition
Galvanized Steel
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Depth
24"
Enclosure Mount Type
Free-Standing
Freestanding Enclosure Base Type
Floor Mount
Enclosure Height
71"
Line
PROLINE G2
Enclosure Width
31.75"
Component
Modular Enclosure Package
Enclosure Door Type
Solid
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Enclosure Latch Type
3-Point
Features
Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
Smooth glide latching system on door for a solid seal with a low closure force
Galvanized Duro-Stand gland plate base
Seamless Polyurethane gasket provides a water-tight, dust-tight seal against moisture and contaminants
Consistent with Type-12 Industrial Packages, fasteners/brackets material upgraded to limit oxidation
12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
Door bar system and two grounding studs present
Padlocking Flush Swing Handle standard, other options available
Reversible hinging on single doors (default left hinge) and overlapping double doors (default right door primary)
2-door enclosures include overlapping double doors to provide full-width open front, secondary door latches with two levers
Single/primary door includes 3-point roller latch system with timed latch engagement
Mounting Subpanel includes EZ-Load Mounting Blocks, which accommodate five loading options: vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame)
Subpanel is securely fastened to the top and bottom of the frame, enclosures narrower than 1200 mm use 4 sets of EZ-Load Glide Blocks, while enclosures equal to or wider than 1200 mm use 8 sets of glide blocks for a well secured subpanel
Galvanized, full-height subpanel supplied standard, white painted subpanel available (sold separately)
Subpanel is depth adjustable, back-to-back subpanel configuration possible with purchase of second subpanel (sold separately)
