Code: 594254
MTE SWGM0045D SineWave Guardian® - 45 Amp, 380-460 VAC, Modular, 30 HP
Normally In Stock

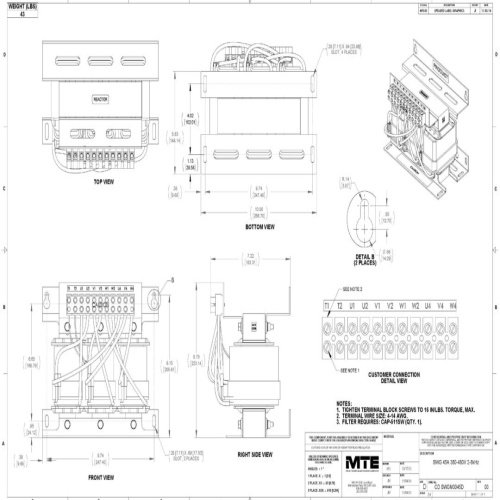

MTE SWGM0045D SineWave Guardian® - 45 Amp, 380-460 VAC, Modular, 30 HP - 8.8 x 10.5 x 7.2 (HxWxD) - 7.5 x 3.9 Capacitor Dimensions
Condition: New
Usually ships Same Day or Next Day$3333.96
Sale Price
$2778.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
MTE SWGM0045D - Introducing the SineWave Guardian® Filter by MTE Corporation: Offering unmatched motor protection and power quality enhancement. This best-in-class filter cleans PWM waveforms from Variable Frequency Drives (VFDs), virtually eliminating high-frequency content and voltage peaks, resulting in extended motor life and reduced downtime. With exceptional reliability, durability, and the ability to operate in high ambient temperatures, it's suitable for diverse applications, from steel mills to oil fields. The modular design and compact footprint ensure easy integration, installation, and service. Backed by a three-year warranty, the SineWave Guardian® Filter is the optimal choice for improving efficiency and bottom-line performance.
Specifications
VFD Filter Horsepower
30 HP
VFD Filter Contactor
No Contactor
Manufacturer
MTE
VFD Filter Watts Loss
225 Watts
VFD Filter Voltage
380 Volt
Filter Type
Sine Wave
VFD Filter Voltage
460 Volt
VFD Filter Enclosure
Modular
VFD Filter Line
Sinewave Guardian
Features
Increase motor life: Reduce motor heating through reduction of high frequencies associated with VFD output and also reduce motor insulation stress through reduction of motor peak voltages.
Reduce motor audible noise: Reduce audible noise through reducing high frequencies associated with VFD output
Reduce radiated emissions: Reduce emissions through reducing high frequencies associated with VFD output.
Protect your motor cable: The reduction of high frequencies associated with VFD output eliminates the need for special motor cables
