Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 592730

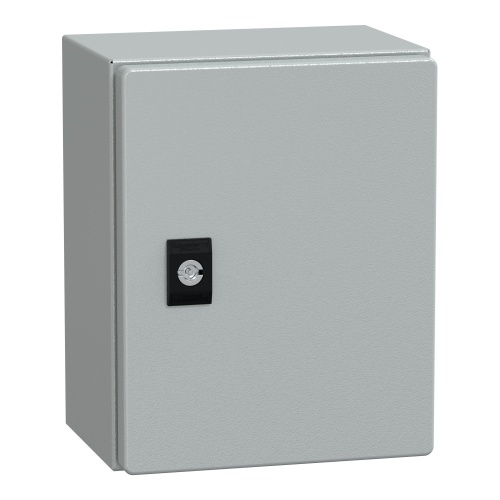

Schneider Electric NSYCRN252150P Spacial CRN Wall-mounting Steel Enclosure - IP66, 9.84" x 7.87" x 5.91" (HxWxD)
Normally In Stock
Schneider Electric NSYCRN252150P - Steel - 3 mm double-bar lock - IK10 - IP66 - 1 Door: Solid - Plain Steel - Standard - 9.84" x 7.87" x 5.91" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$108.13
Sale Price
$90.11
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric NSYCRN252150P from the Spacial range is an enclosure made of steel with a galvanized steel mounting plate. It features a 3 mm double-bar lock for security and removable parts including a hinged door, cable gland plate, and mounting plate. The plain solid door is reversible up to 120°. This front-accessible enclosure is designed for wall-mounting, weighs 7.22 lbs (3.274 kg), and offers a high IK degree of protection (IK10 IEC 62262).
Specifications
Enclosure Depth
5.91"
Manufacturer
Schneider Electric
Enclosure Height
9.84"
Enclosure Width
7.87"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure Impact Rating
IK10
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Plain Steel
Enclosure Gland Plate
Standard
Line
Spacial CRN
Features
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application
This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate
The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant
It has IP66 and IK10 protection level, which can help protect against impact, water and dust

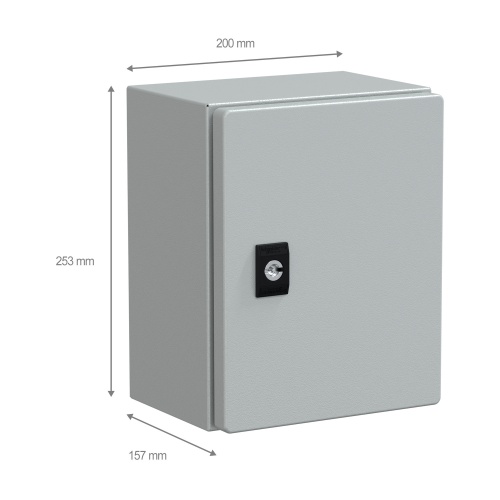

The dimensions are (W) 200 mm x (H) 250 mm x (D) 150 mm
It features a back welded with double profile forming a protected sealed area, sides made from a single folded section
The door type is plain, it has 1 door(s) and the door opening side is reversible
Equipped with a 3 mm double-bar lock lock type
Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish
This compact enclosure is c.UL certified.
