Code: 592723

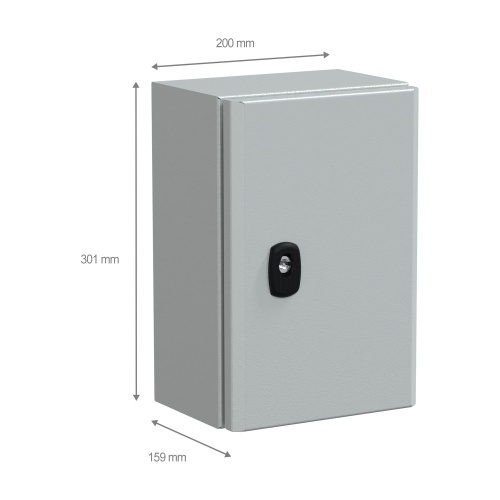

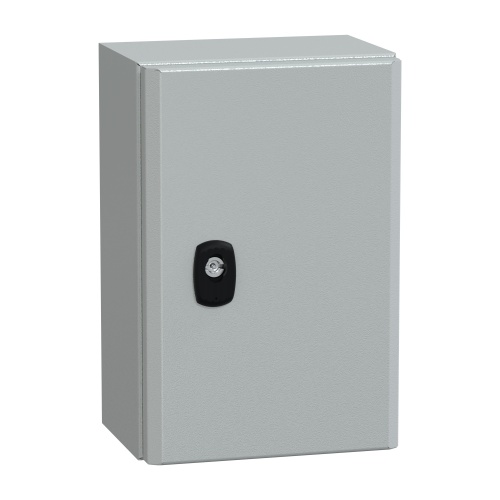

Schneider Electric NSYS3D3215P Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 11.81" x 7.87" x 5.91" (HxWxD)
Normally In Stock
Schneider Electric NSYS3D3215P - Steel - 3 mm double-bar lock - IK10 - NEMA 4X/13 - 1 Door: Solid - Plain Steel - Standard - 11.81" x 7.87" x 5.91" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$76.26
Sale Price
$63.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric NSYS3D3215P Spacial S3D enclosure is constructed from steel with a galvanized steel mounting plate. It features a 3 mm double-bar lock for added security and a solid reversible door that opens at 120°. The enclosure is finished in Gray RAL 7035 and is designed for front accessibility. The NEMA 4X/13 rated enclosure includes a standard gland plate and wall-mounting installation accessory.
Specifications
Enclosure Depth
5.91"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
7.87"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Plain Steel
Enclosure Height
11.81"
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Quality and aesthetics
Easy to equip and easy to maintain
Earthing studs included
