Code: 592717

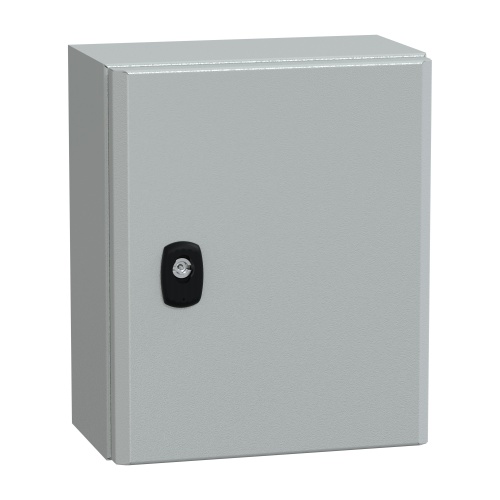

Schneider Electric NSYS3D32515P Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 11.81" x 9.84" x 5.91" (HxWxD)
Normally In Stock
Schneider Electric NSYS3D32515P - Steel - 3 mm double-bar lock - IK10 - NEMA 4X/13 - 1 Door: Solid - Plain Steel - Standard - 11.81" x 9.84" x 5.91" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$78.48
Sale Price
$65.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric Spacial S3D enclosure ( NSYS3D32515P) is made of durable steel and features a galvanized steel mounting plate. It is equipped with a 3 mm double-bar lock for added security and has an attractive gray color (RAL 7035). The removable parts include a hinged door, screws for the cable gland plate, and fixing elements for the mounting plate. The enclosure has a solid door that opens on both sides (reversible 120°). It offers front accessibility for operation and has one front-facing door. The gland plate is of standard type, and the installation accessory is designed for wall-mounting. The enclosure has a NEMA degree of protection of NEMA 4X/13.
Specifications
Enclosure Depth
5.91"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
9.84"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Plain Steel
Enclosure Height
11.81"
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Spacial S3D wall mounted steel enclosure with plain door

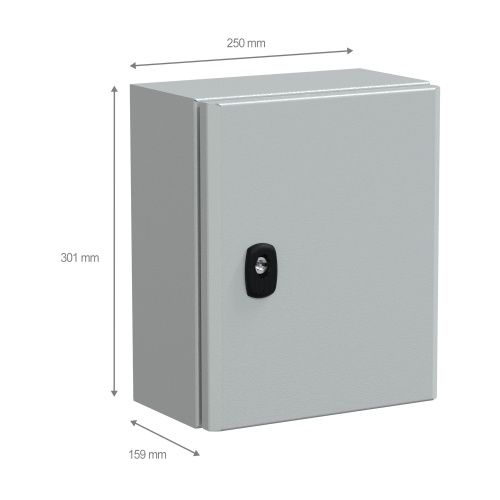

300 x 250 x 150 mm
Single piece body, without mounting plate
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Protection IP 66, IK10, Grey RAL 7035.
