Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

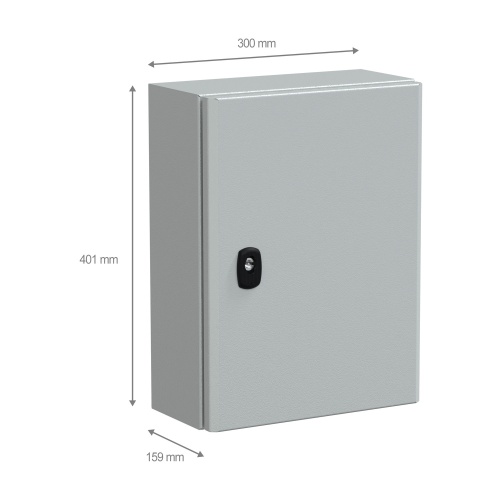

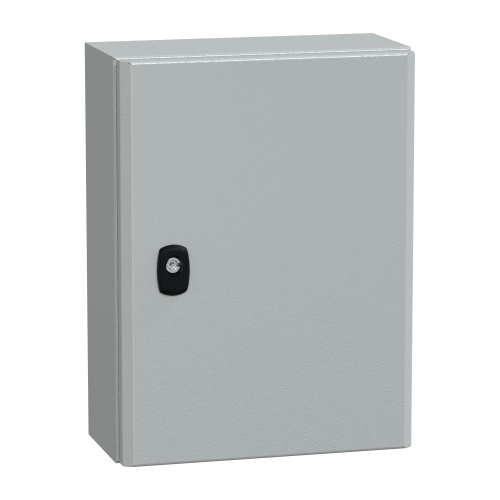

Schneider Electric NSYS3D4315 Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 15.75" x 11.81" x 5.91" (HxWxD)
Normally In Stock
Code: 592700
Schneider Electric NSYS3D4315 - Steel - 3 mm double-bar lock - IK10 - NEMA 4X/13 - 1 Door: Solid - Without Mounting Plate - Standard - 15.75" x 11.81" x 5.91" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$87.66
Sale Price
$73.05
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric Spacial S3D is a steel enclosure with a solid reversible door. It features a 3 mm double-bar lock for security and has a gray RAL 7035 color. The front face has one door that can be opened 120°. It is accessible for operation from the front and is suitable for wall-mounting. The NEMA Degree of Protection is NEMA 4X/13.
Specifications
Enclosure Depth
5.91"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Height
15.75"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Width
11.81"
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Quality and aesthetics
Easy to equip and easy to maintain
Earthing studs included
