Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

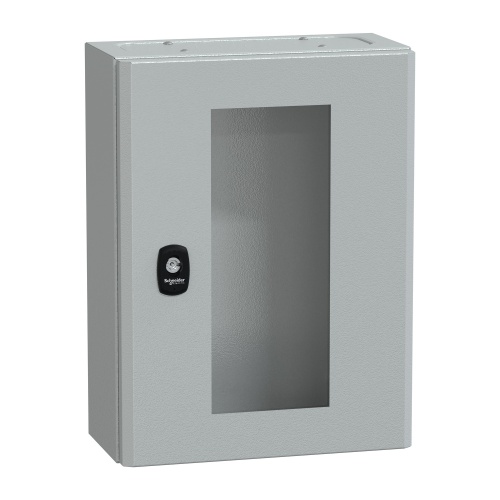

Schneider Electric NSYS3DM4315T Spacial S3DM Wall-mounting Steel Enclosure - IP66, 15.75" x 11.81" x 5.91" (HxWxD)
Normally In Stock
Code: 592698
Schneider Electric NSYS3DM4315T - Steel - 3 mm double-bar lock - IK10 - IP66 - 1 Door: Glass - Without Mounting Plate - Standard - 15.75" x 11.81" x 5.91" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$164.21
Sale Price
$136.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYS3DM4315T from the Spacial range is a high-quality enclosure made of steel with a gray RAL 7035 color. It features a 3 mm double-bar lock for enhanced security. The reversible glass door allows for easy accessibility and the front face has a single door. This wall-mounting enclosure does not include a mounting plate.
Specifications
Enclosure Depth
5.91"
Manufacturer
Schneider Electric
Enclosure Height
15.75"
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure Impact Rating
IK10
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Door Type
Glass
Enclosure Width
11.81"
Enclosure Gland Plate
Standard
Line
Spacial S3DM
Features
The Spacial S3DM wall-mounting compact enclosure comes in grey colour and designed for modular distribution application
This compact enclosure is composed of body, cable gland plate, door, lock
The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant
It has IP66 and IK08 protection level, which can help protect against impact, water and dust

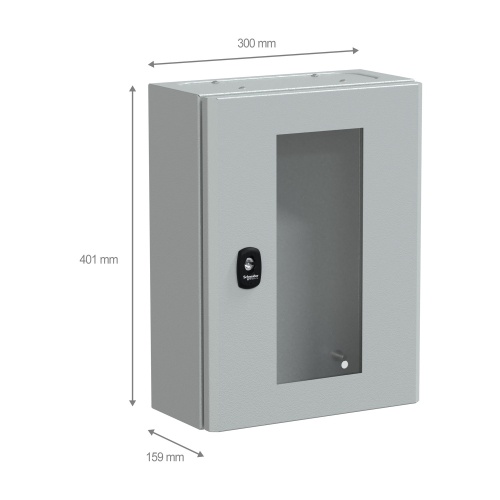

The dimensions are (W) 300 mm x (H) 400 mm x (D) 150 mm
It is designed for installation of a modular chassis DLM
It features a gutter-shaped front rail double sheet thickness, single piece body

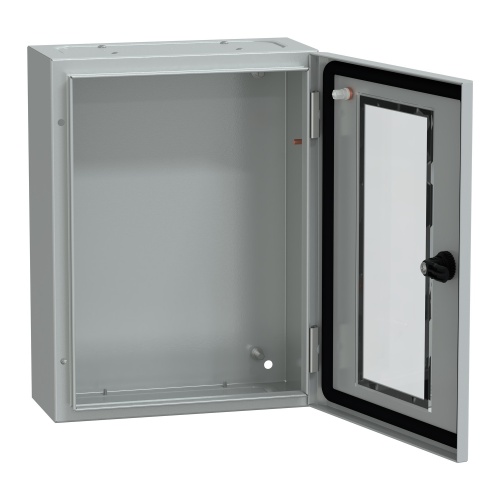

The door type is glazed, it has 1 door(s) and the door opening side is reversible
Equipped with a 3 mm double-bar lock lock type
Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish
This compact enclosure is BV, DNV, GL, LR, c
UL certified.
