Code: 592695

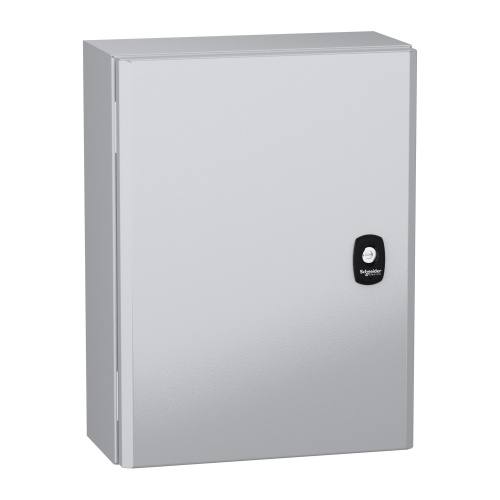

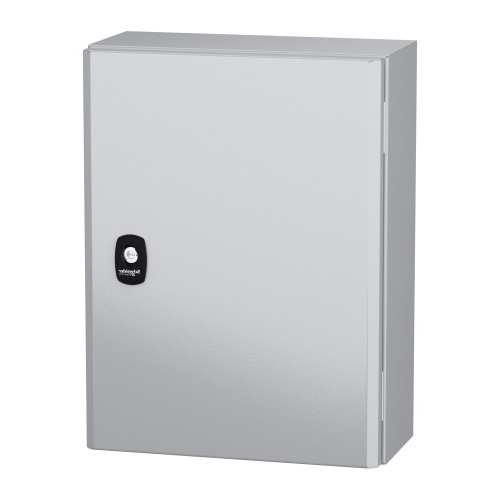

Schneider Electric NSYS3DC4315 Spacial S3DC Wall-mounting Steel Enclosure - NEMA 4X/13, 15.75" x 11.81" x 5.91" (HxWxD)
Normally In Stock
Schneider Electric NSYS3DC4315 - Steel - Screw driver insert lock - IK10 - NEMA 4X/13 - 1 Door: Solid - Without Mounting Plate - Without Gland Plate - 15.75" x 11.81" x 5.91" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$113.65
Sale Price
$94.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYS3DC4315 is a Spacial steel enclosure with a gray RAL 7035 color. It features a screw driver insert lock and a solid door that is reversible 120°. The front-facing door is removable by hinges for easy accessibility. This wall-mountable enclosure is NEMA 4X/13 rated and does not include a mounting plate or gland plate.
Specifications
Enclosure Depth
5.91"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Height
15.75"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Gland Plate
Without Gland Plate
Enclosure Width
11.81"
Line
Spacial S3DC
Enclosure Latch Type
Screw Driver Insert Lock
Features
PanelSeT S3D offers steel wall-mounted enclosures up to IP66 and IK10 protection, ideal for industrial and infrastructure applications.
