Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 592693

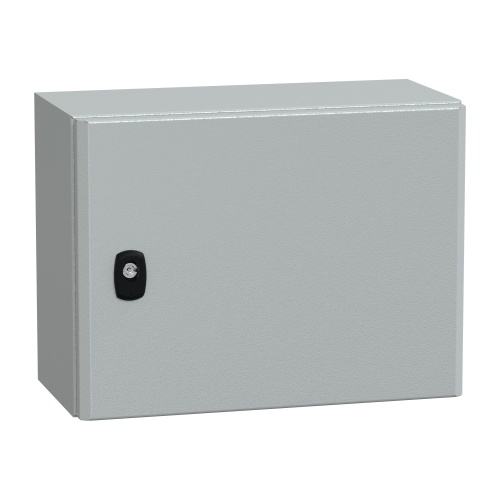

Schneider Electric NSYS3D3420 Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 11.81" x 15.75" x 7.87" (HxWxD)
Normally In Stock
Schneider Electric NSYS3D3420 - Steel - 3 mm double-bar lock - IK10 - NEMA 4X/13 - 1 Door: Solid - Without Mounting Plate - Standard - 11.81" x 15.75" x 7.87" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$97.90
Sale Price
$81.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric Spacial S3D is a steel enclosure with a gray RAL 7035 color. It features a 3 mm double-bar lock and a solid reversible door for easy access. The front face has one door and a cable gland plate securely fastened by screws. This wall-mountable enclosure has a NEMA 4X/13 degree of protection.
Specifications
Enclosure Depth
7.87"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
15.75"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Height
11.81"
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Spacial S3D wall mounted steel enclosure with plain door

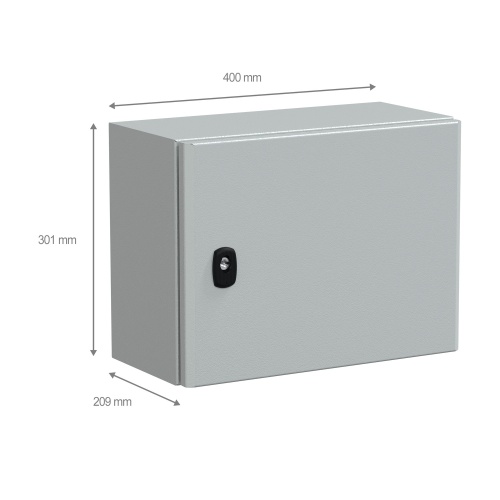

300 x 400 x 200 mm
Single piece body, without mounting plate
Robust construction based on a new design
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Gutter shaped front rail double sheet thickness
Protection IP 66, IK10, Grey RAL 7035
1 cable gland plate included, standard
Extensive range of accessories
Packaging is reusable after assembly.
