Code: 592687

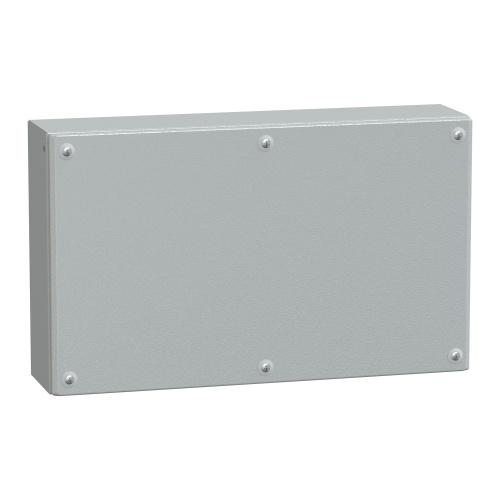

Schneider Electric NSYSBM305012 Spacial SBM Wall mounted Sheet Steel Enclosure - IP66, 11.81" x 19.69" x 4.72" (HxWxD)
Normally In Stock
Schneider Electric NSYSBM305012 - Sheet Steel - Captive screw PZ2 outside sealed area - IK10 - IP66 - 11.81" x 19.69" x 4.72" (HxWxD)
Condition: New
CALL FOR LEAD TIME$124.63
Sale Price
$103.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric Spacial SBM (Original NSYSBM305012) is a wall-mounted enclosure with a sheet steel construction and a gray RAL 7035 color. The enclosure features a plain door front cover, which is removable and secured with captive screws. With a surface finish of polyester powder and a locked area with captive screw PZ2, this enclosure is suitable for a wide operating temperature range of -31 to 176 °F (-35 to 80 °C).
Specifications
Enclosure Depth
4.72"
Manufacturer
Schneider Electric
Enclosure Width
19.69"
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Impact Rating
IK10
Enclosure Latch Type
Captive Screw
Enclosure Height
11.81"
Line
Spacial SBM
Features
Industrial box for Spacial SBM
Multi purpose

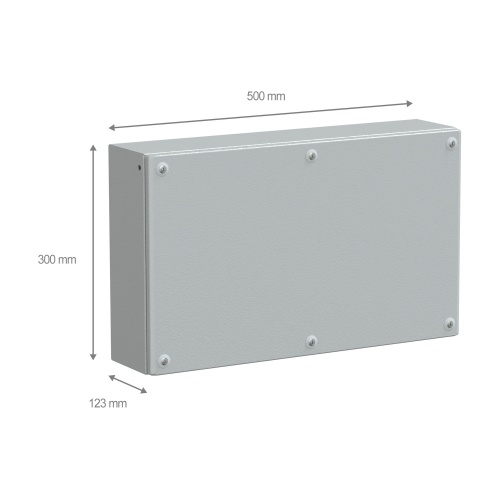

300 x 500 x 120 mm
Flat face box
Wall mounted on enclosure
Single piece body folded and welded
Cover fixing with half turn metal srew
Cover by 4 captive screw PZ2 outside sealed area
Made sheet of stee with polyester powder finish
Protection IP 66, IK10.
