Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 592684

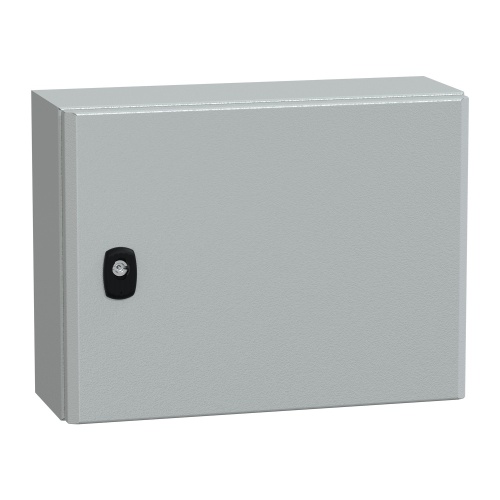

Schneider Electric NSYS3D3415P Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 11.81" x 15.75" x 5.91" (HxWxD)
Normally In Stock
Schneider Electric NSYS3D3415P - Steel - 3 mm double-bar lock - IK10 - NEMA 4X/13 - 1 Door: Solid - Plain Steel - Standard - 11.81" x 15.75" x 5.91" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$94.62
Sale Price
$78.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Spacial S3D is a steel enclosure with a galvanized mounting plate and a 3mm double-bar lock for security. Its gray color (RAL 7035) complements any setting. Removable parts include hinges for the door, screws for the cable gland plate, and fixing elements for the mounting plate. With a solid door that opens 120° in either direction, it offers convenient front accessibility. The enclosure boasts NEMA 4X/13 protection and is wall-mountable.
Specifications
Enclosure Depth
5.91"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
15.75"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Plain Steel
Enclosure Height
11.81"
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Spacial S3D wall mounted steel enclosure with plain door

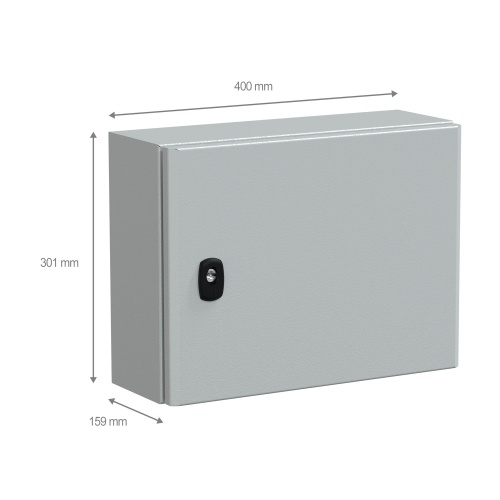

300 x 400 x 150 mm
Single piece body, mounting plate included
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Protection IP 66, IK10, Grey RAL 7035.
