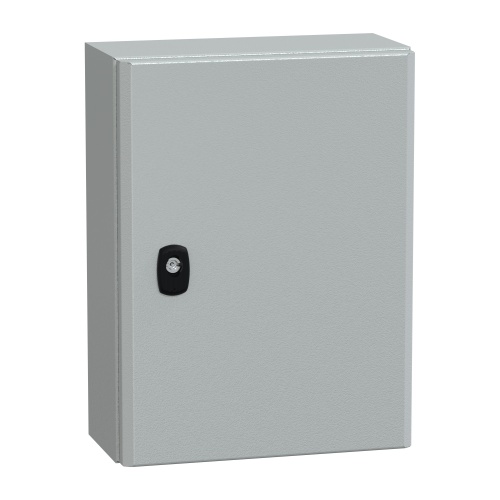

Schneider Electric NSYS3D4315P Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 15.75" x 11.81" x 5.91" (HxWxD)
Normally In Stock
Code: 592681
Schneider Electric NSYS3D4315P - Steel - 3 mm double-bar lock - IK10 - NEMA 4X/13 - 1 Door: Solid - Plain Steel - Standard - 15.75" x 11.81" x 5.91" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$100.13
Sale Price
$83.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Spacial S3D enclosure (NSYS3D4315P) is a durable steel product designed for wall-mounting. It features a reversible solid door with a 3mm double-bar lock, ensuring security. The door opens up to 120°, providing easy front access for operation. With a NEMA 4X/13 degree of protection, this gray-colored enclosure ensures proper protection for your equipment.
Specifications
Enclosure Depth
5.91"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Height
15.75"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Plain Steel
Enclosure Width
11.81"
Enclosure Gland Plate
Standard
Line
Spacial S3D
Features
Spacial S3D wall mounted steel enclosure with plain door

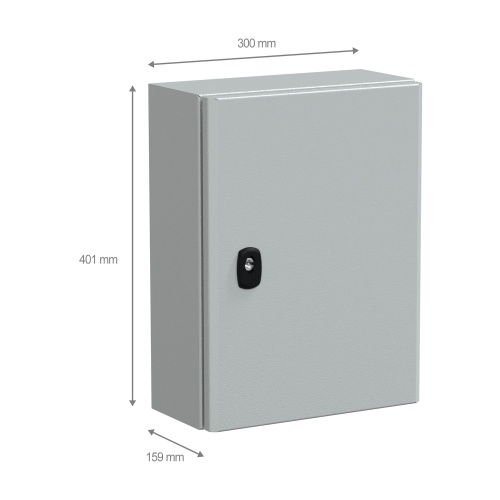

400 x 300 x 150 mm
Single piece body, mounting plate included
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Protection IP 66, IK10, Grey RAL 7035.
