Code: 592676

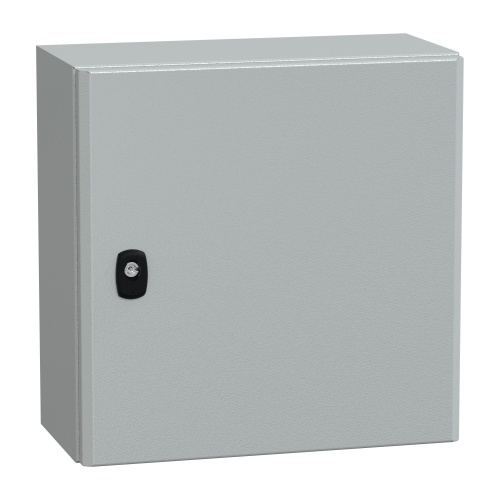

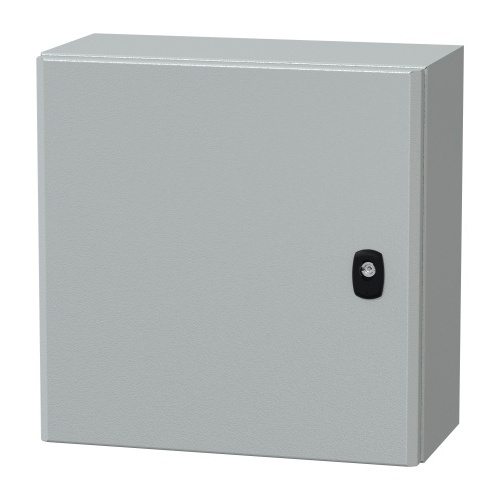

Schneider Electric NSYS3DEX4420 Spacial S3DEX Wall-mounting Steel Enclosure - NEMA 4X/13, 15.75" x 15.75" x 7.87" (HxWxD)
Normally In Stock
Schneider Electric NSYS3DEX4420 - Steel - Double-bar lock - IK10 - NEMA 4X/13 - 1 Door: Solid - Without Mounting Plate - Without Gland Plate - 15.75" x 15.75" x 7.87" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$153.23
Sale Price
$127.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYS3DEX4420 is a gray steel Spacial enclosure with a double-bar lock. The solid reversible door allows for easy front access. It has one front face door, without a mounting plate or gland plate. Designed for wall-mounting with NEMA 4X/13 protection, it is safe for use in potentially explosive environments.
Specifications
Enclosure Depth
7.87"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
15.75"
Enclosure Height
15.75"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Gland Plate
Without Gland Plate
Line
Spacial S3DEX
Features
Spacial S3DEX (ATEX certified) compact enclosure
H is400xW is400xD is200 mm
For potential explosive atmosphere
No mounting plate or cable gland included
1 front face/door
Wall mounting installation
Gutter-shaped front rail double sheet thickness particularity
Steel made, epoxy-polyester powder finish
Protection IP 66, IK10, Grey RAL 7035
Marking is II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC.
