Code: 592672

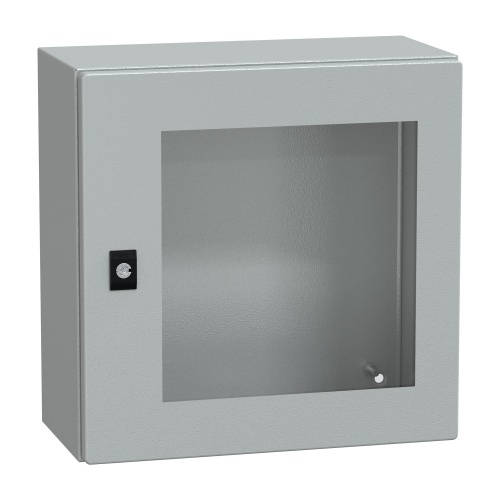

Schneider Electric NSYCRN44200T Spacial CRN Wall-mounting Steel Enclosure - IP66, 15.75" x 15.75" x 7.87" (HxWxD)
Normally In Stock
Schneider Electric NSYCRN44200T - Steel - 3 mm double-bar lock - IK08 - IP66 - 1 Door: Glass - Without Mounting Plate - Standard - 15.75" x 15.75" x 7.87" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$222.07
Sale Price
$185.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric NSYCRN44200T from the Spacial range is a durable and secure steel enclosure with a glass door and double-bar lock for added protection. It features a reversible 120° door opening and front accessibility for easy operation. The installation is simple with wall-mounting accessories and standard gland plates. With a net weight of 15.53 lb(US) (7.044 kg), it offers reliable protection with an IK08 degree of protection.
Specifications
Enclosure Depth
7.87"
Manufacturer
Schneider Electric
Enclosure Width
15.75"
Enclosure Height
15.75"
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure Impact Rating
IK08
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Door Type
Glass
Enclosure Gland Plate
Standard
Line
Spacial CRN
Features
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application
This compact enclosure is composed of body, cable gland plate, door, lock
The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant
It has IP66 and IK08 protection level, which can help protect against impact, water and dust

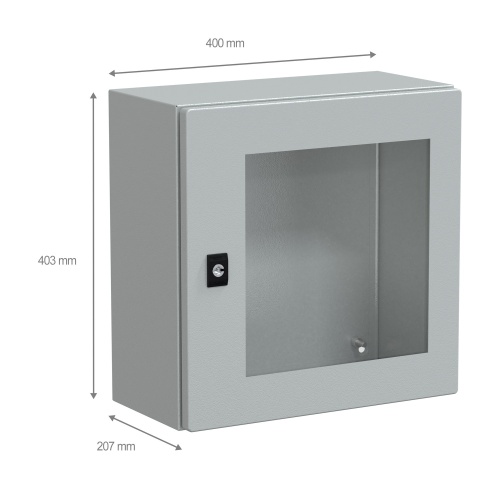

The dimensions are (W) 400 mm x (H) 400 mm x (D) 200 mm
It features a back welded with double profile forming a protected sealed area, sides made from a single folded section
The door type is glazed, it has 1 door(s) and the door opening side is reversible
Equipped with a 3 mm double-bar lock lock type
Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish
This compact enclosure is c.UL certified.
