Schneider Electric NSYCRN43200P Spacial CRN Wall-mounting Steel Enclosure - IP66, 15.75" x 11.81" x 7.87" (HxWxD)
Normally In Stock
Code: 592671
Schneider Electric NSYCRN43200P - Steel - 3 mm double-bar lock - IK10 - IP66 - 1 Door: Solid - Plain Steel - Standard - 15.75" x 11.81" x 7.87" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$122.83
Sale Price
$102.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYCRN43200P from the Spacial range is a steel enclosure with a Galvanized steel mounting plate. It features a 3 mm double-bar lock, reversible 120° solid door, and front accessibility. The enclosure includes a standard gland plate and wall-mounting installation accessory. With a net weight of 15.31 lb (6.946 kg) and IK10 degree of protection, this product ensures durability and security.
Specifications
Enclosure Depth
7.87"
Manufacturer
Schneider Electric
Enclosure Height
15.75"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure Impact Rating
IK10
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Plain Steel
Enclosure Width
11.81"
Enclosure Gland Plate
Standard
Line
Spacial CRN
Features
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application
This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate
The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant
It has IP66 and IK10 protection level, which can help protect against impact, water and dust

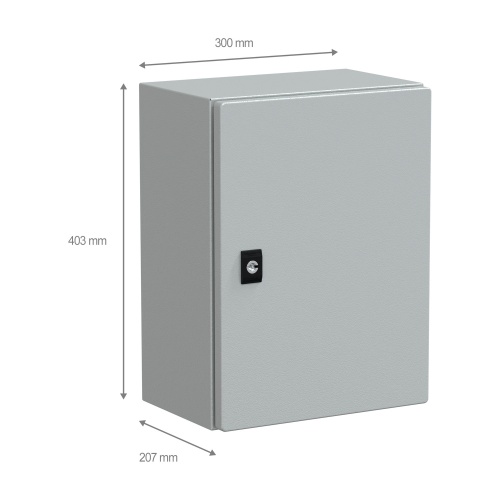

The dimensions are (W) 300 mm x (H) 400 mm x (D) 200 mm
It features a back welded with double profile forming a protected sealed area, sides made from a single folded section
The door type is plain, it has 1 door(s) and the door opening side is reversible
Equipped with a 3 mm double-bar lock lock type
Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish
This compact enclosure is c.UL certified.
