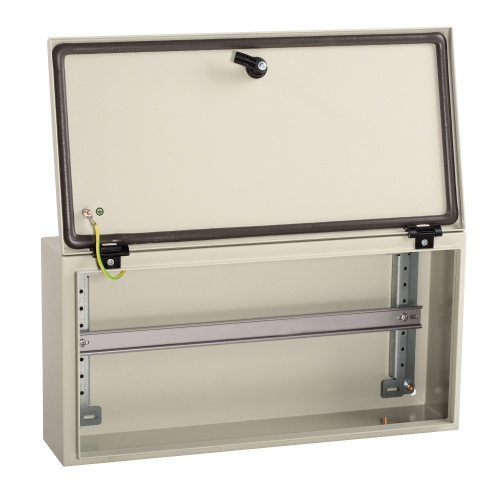

Schneider Electric NSYS3DB3615 Spacial S3DB Wall-mounting,Horizontal or vertical position Steel Enclosure - NEMA 4X/13, 11.81" x 23.62" x 5.91" (HxWxD)
Normally In Stock
Code: 592665
Schneider Electric NSYS3DB3615 - Steel - 3 mm double-bar lock - IK10 - NEMA 4X/13 - 1 Door: Solid - Without Mounting Plate - Without Gland Plate - 11.81" x 23.62" x 5.91" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$149.09
Sale Price
$124.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

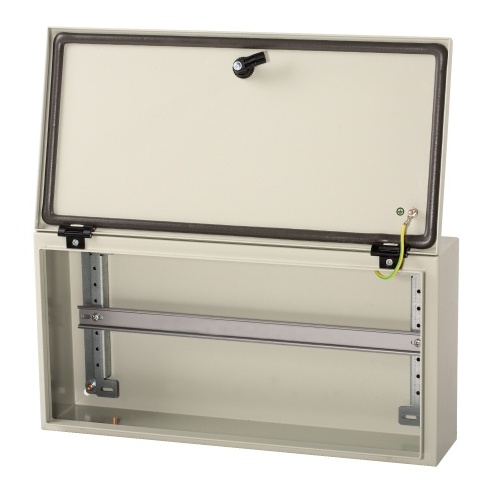

Schneider Electric NSYS3DB3615 is a Spacial S3DB wall-mounting steel cabinet in gray (RAL 7035). It features a solid reversible 180° door with a 3 mm double-bar lock. The cabinet includes a front-facing door, is accessible from the front, and does not come with a mounting plate or gland plate. It has a NEMA 4X/13 degree of protection.
Specifications
Enclosure Depth
5.91"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
23.62"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Gland Plate
Without Gland Plate
Enclosure Height
11.81"
Line
Spacial S3DB
Features
Spacial S3DB compact enclosure
H is300xW is600xD is150 mm
For equipping with terminal
No mounting plate or cable gland included
1 front face/door
Wall mounting install (Horz/Vert)
Gutter-shaped front rail double sheet thickness particularity
Steel made, epoxy-polyester powder finish
Protection IP 66, IK10, Grey RAL 7035
Certifications is BV, CUL, DNV, GL, LR, UL.
