Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

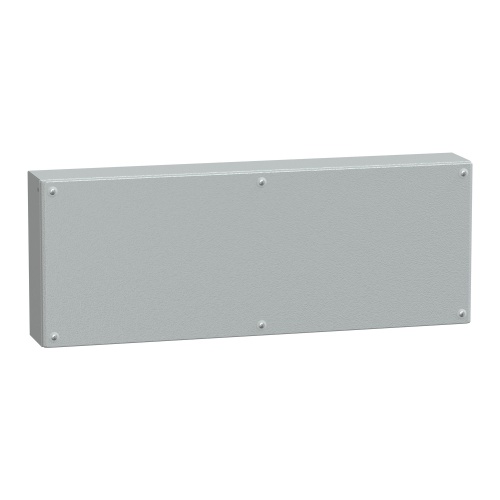

Schneider Electric NSYSBM308012 Spacial SBM Wall mounted Sheet Steel Enclosure - IP66, 11.81" x 31.5" x 4.72" (HxWxD)
Normally In Stock
Code: 592657
Schneider Electric NSYSBM308012 - Sheet Steel - Captive screw PZ2 outside sealed area - IK10 - IP66 - 11.81" x 31.5" x 4.72" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$169.21
Sale Price
$141.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Spacial SBM wall-mounted enclosure ( NSYSBM308012) is constructed using sheet steel with a gray RAL 7035 color finish. It features a plain door front cover, secured by captive metal screws for easy removal. The enclosure is designed for use in a wide temperature range of -31…176 °F (-35…80 °C).
Specifications
Enclosure Depth
4.72"
Enclosure Width
31.5"
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Impact Rating
IK10
Enclosure Latch Type
Captive Screw
Enclosure Height
11.81"
Line
Spacial SBM
Features
Industrial box for Spacial SBM
Multi purpose
300 x 800 x 120 mm
Flat face box
Wall mounted on enclosure
Single piece body folded and welded
Cover fixing with half turn metal srew
Cover by 4 captive screw PZ2 outside sealed area
Made sheet of stee with polyester powder finish
Protection IP 66, IK10.
