Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 592636

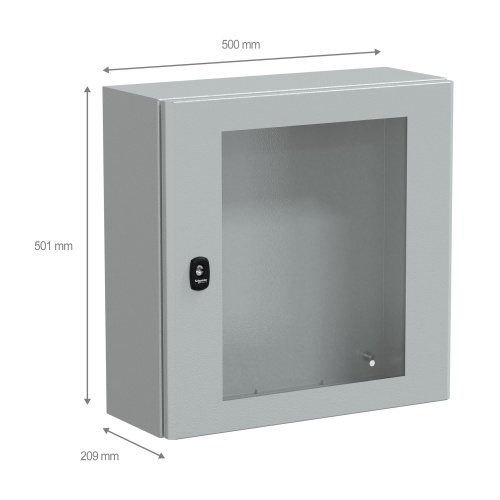

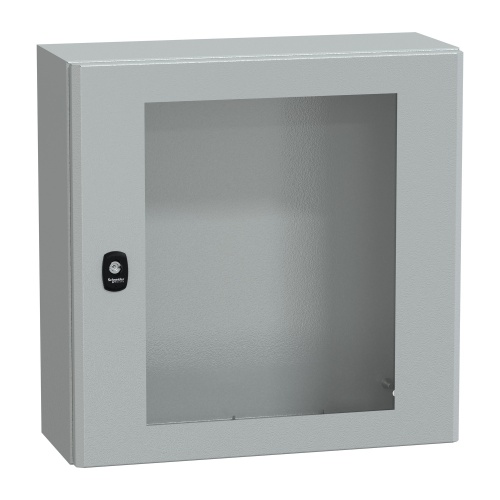

Schneider Electric NSYS3D5520T Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 19.69" x 19.69" x 7.87" (HxWxD)
Normally In Stock
Schneider Electric NSYS3D5520T - Steel - 3 mm double-bar lock - IK08 - NEMA 4X/13 - 1 Door: Glass - Without Mounting Plate - Standard - 19.69" x 19.69" x 7.87" (HxWxD)
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$172.99
Sale Price
$144.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric NSYS3D5520T Spacial S3D series cabinet is a front-accessible wall-mounting unit made of durable body steel with a gray RAL 7035 finish. It features a glass door with reversible 120° opening, secured by a 3mm double-bar lock. The cabinet includes a standard gland plate and is NEMA 4X/13 rated for protection against dust, water, and corrosion.
Specifications
Enclosure Depth
7.87"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
19.69"
Enclosure Height
19.69"
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK08
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Door Type
Glass
Enclosure Gland Plate
Standard
Line
Spacial S3D

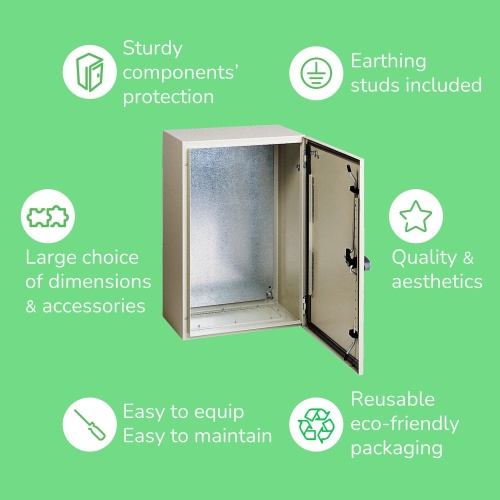

Features
Spacial S3D wall mounted steel enclosure with glazed door
500 x 500 x 200 mm
Single piece body, without mounting plate
Robust construction based on a new design
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Gutter shaped front rail double sheet thickness
Protection IP 66, IK08, Grey RAL 7035
1 cable gland plate included, standard
Extensive range of accessories
Packaging is reusable after assembly.
