Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 592632

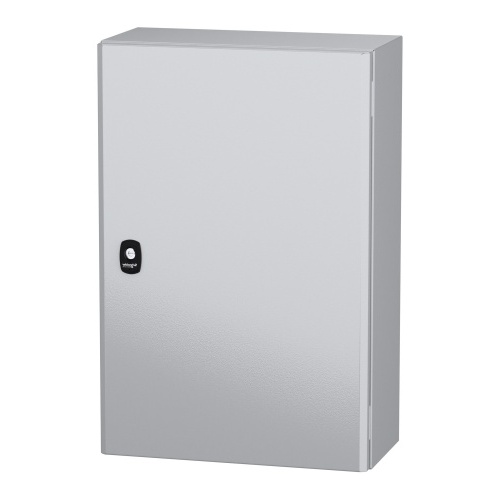

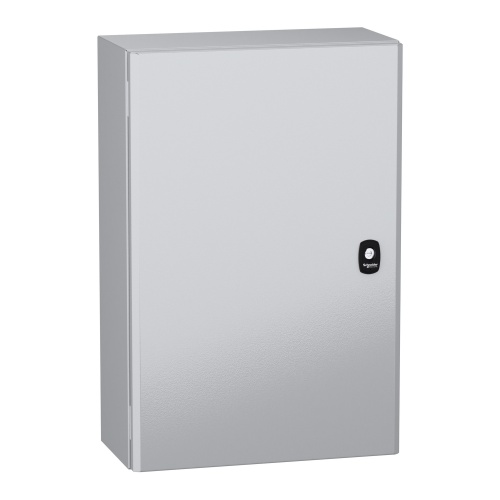

Schneider Electric NSYS3DC6420 Spacial S3DC Wall-mounting Steel Enclosure - NEMA 4X/13, 23.62" x 15.75" x 7.87" (HxWxD)
Normally In Stock
Schneider Electric NSYS3DC6420 - Steel - 3-Points lock, screw driver insert - IK10 - NEMA 4X/13 - 1 Door: Solid - Without Mounting Plate - Without Gland Plate - 23.62" x 15.75" x 7.87" (HxWxD)
Condition: New
CALL FOR LEAD TIME$171.12
Sale Price
$142.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYS3DC6420 Spacial S3DC is a gray steel cabinet with a solid door that opens on the front face, providing reversible 120° accessibility. It features a 3-point lock with a screwdriver insert and a removable door by hinges. This wall-mountable cabinet has a NEMA 4X/13 degree of protection and does not include a mounting plate or gland plate.
Specifications
Enclosure Depth
7.87"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
15.75"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Gland Plate
Without Gland Plate
Enclosure Height
23.62"
Line
Spacial S3DC
Enclosure Latch Type
3-Point Lock
Features
PanelSeT S3D offers steel wall-mounted enclosures up to IP66 and IK10 protection, ideal for industrial and infrastructure applications.
