Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 592628

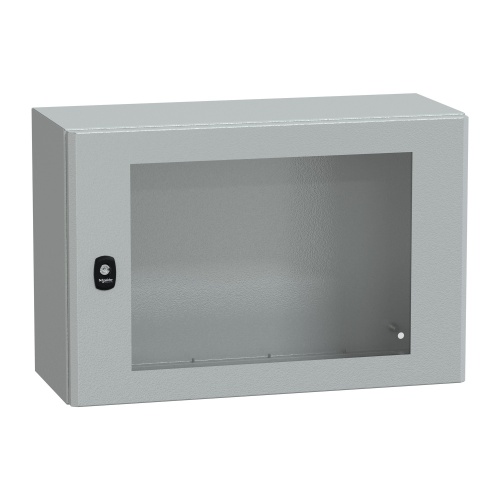

Schneider Electric NSYS3D4625T Spacial S3D Wall-mounting Steel Enclosure - NEMA 4X/13, 15.75" x 23.62" x 9.84" (HxWxD)
Normally In Stock
Schneider Electric NSYS3D4625T - Steel - 3-Points lock, 3 mm double-bar - IK08 - NEMA 4X/13 - 1 Door: Glass - Without Mounting Plate - Standard - 15.75" x 23.62" x 9.84" (HxWxD)
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$196.06
Sale Price
$163.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric NSYS3D4625T is part of the Spacial range, with a body and door made of steel and security glass. It features a 3-point lock, 3 mm double-bar, and is colored in Gray RAL 7035. The door is removable by hinges, and the cable gland plate is secured by screws. It does not include a mounting plate, and the glass door opens on both sides by 120 °. The product name is Spacial S3D, and it provides front accessibility for operation. It has one front face door and a standard gland plate. The installation is for wall-mounting, and it offers a NEMA 4X/13 degree of protection. It also meets the electromagnetic field immunity test for electromagnetic compatibility.
Specifications
Enclosure Depth
9.84"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
23.62"
Enclosure Height
15.75"
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK08
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Door Type
Glass
Enclosure Gland Plate
Standard
Line
Spacial S3D
Enclosure Latch Type
3-Point Lock
Features

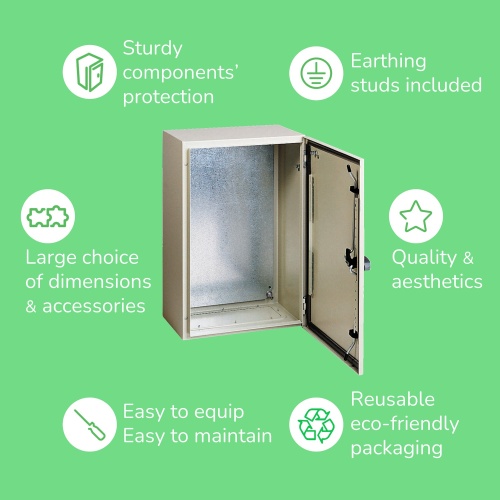

Spacial S3D wall mounted steel enclosure with glazed door

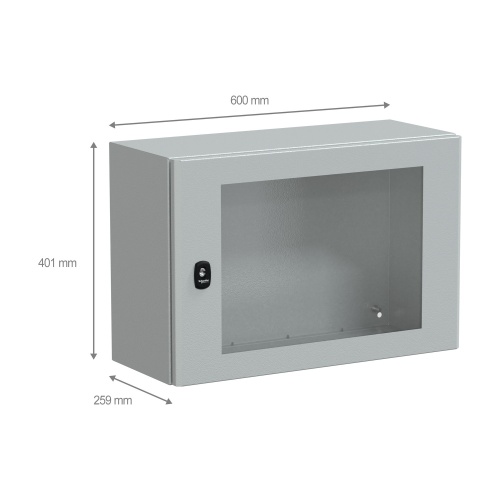

400 x 600 x 250 mm
Single piece body, without mounting plate
Robust construction based on a new design
3-point closure system with handle and 3 mm double bar lock insert
Steel made, epoxy-polyester powder finish
Gutter shaped front rail double sheet thickness
Protection IP 66, IK08, Grey RAL 7035
1 cable gland plate included, standard
Extensive range of accessories
Packaging is reusable after assembly.
