Code: 592624

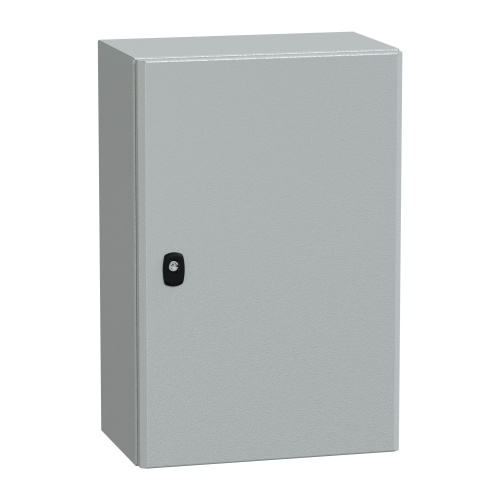

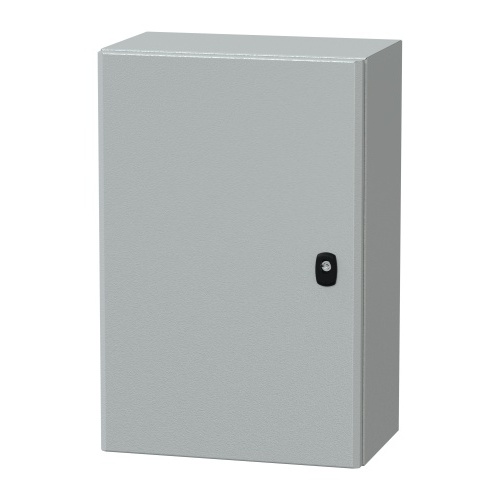

Schneider Electric NSYS3DEX6425 Spacial S3DEX Wall-mounting Steel Enclosure - NEMA 4X/13, 23.62" x 15.75" x 9.84" (HxWxD)
Normally In Stock
Schneider Electric NSYS3DEX6425 - Steel - 3-Points lock, 3 mm double-bar - IK10 - NEMA 4X/13 - 1 Door: Solid - Without Mounting Plate - Without Gland Plate - 23.62" x 15.75" x 9.84" (HxWxD)
Condition: New
CALL FOR LEAD TIME$209.89
Sale Price
$174.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYS3DEX6425 is a Spacial steel enclosure with a gray RAL 7035 color. It features a 3-point lock and a 3mm double-bar for secure storage. The door is removable by hinges and opens on a reversible side. With a front-facing door and a solid construction, it provides easy accessibility and protection. The enclosure is NEMA 4X/13 certified for water and dust resistance, making it suitable for outdoor use. It also meets the ATEX directive 94/9/EC for hazardous areas. Ideal for wall-mounting, it does not come with a gland plate. This product is known as the Spacial S3DEX.
Specifications
Enclosure Depth
9.84"
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
15.75"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 13
Enclosure Impact Rating
IK10
Enclosure Mounting Plate
Without Mounting Plate
Enclosure Gland Plate
Without Gland Plate
Enclosure Height
23.62"
Line
Spacial S3DEX
Enclosure Latch Type
3-Point Lock
Features
Provides exceptional protection against dust, water, and impact.
ATEX certified for use in potentially explosive atmospheres.
Single piece steel body with a gutter-shaped front rail for durability.
Plain door with a 3-point lock and reversible opening side.
Easy to remove door for convenient maintenance access.
